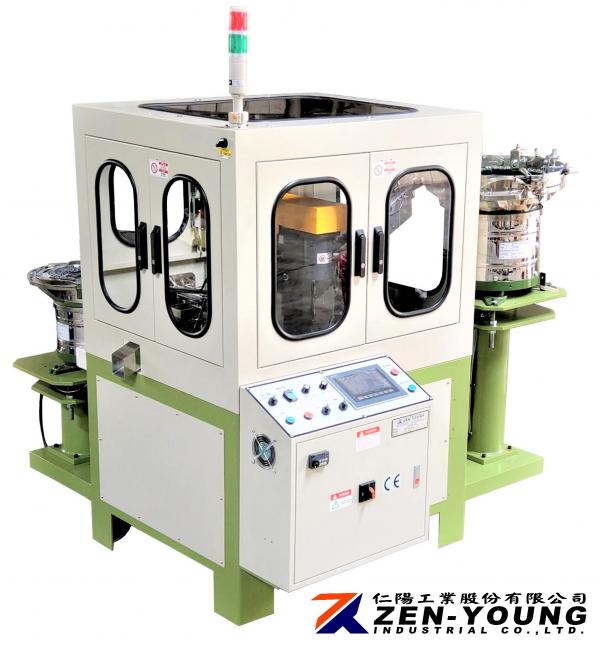

Index Drive / Screw Screwing With Plastic / Rubber Washer Assembly Machine

Index Drive / Screw Screwing With Plastic / Rubber Washer Assembly Machine

Screw Screwing With Plastic / Rubber Washer Assembly Machine

Product ID: ZYVI





Use electric screwdrivers to screw the screws into the washer with high-speed rotation, and the washer will not deform after assembly.

• After assembling, the washer will be close to the bottom of the screw head.

Specifications:
  • Motor power: 1/2 HP.

  • Dimension: 1,750 (L) x 1,700 (W) x 1,550 (H) mm.

  • Control: Programmable logic control of all movements.

  • Inverter to adjust machine speed.



VIDEO - SCREW M4X12MM + RUBBER WASHER OD 8.3X2.0 MM.



Features:
  • Use electric screwdriver to screw the screws into the washer with high-speed rotation, and the washer will not deform after assembly.

  • Sensing for every process of machine motion, easy to operate and eliminate malfunction,and protect the safety for machinery and operator.

  • Sorting device for unassembled screw or washer.

  • Operating Interface Screen: Through the screen easier to understand the mechanical functionand the error place.
  • When the supply of screws or washers is late, the machine will stop automatically. After the feed tracks are full of screw and washer, the machine will be automatic movement.
機型
Model
螺絲外徑
Screw Diameter
螺絲長度
Screw Length
華司
Washer
組裝速度
Output
ZYVC M3 / M4 / M5 mm 8~16 mm EPDM / Plastic Washer
橡膠 / 塑膠 華司
70~100 PCS/MIN
Certificate:
  • CE
Order Information:
  • Minimum Order: 1 set
  • Branded Product
