Product

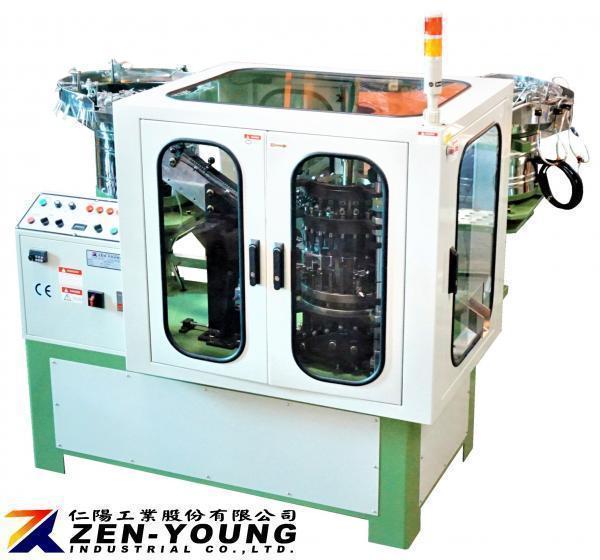

Self - Drilling / Tapping Screw & Washer Assembly Machine

Self - Drilling / Tapping Screw & Washer Assembly Machine

Self-Drilling / Tapping Screw & Washer Assembly Machine

Product ID: ZYB

●Assembling PVC / EPDM rubber / Bonded sealing Washer.

New pressing screw head mechanism is by cam drive and springs.


Features Description Download Now !

Specifications:
  • Motor power: 1/2 HP

  • Dimension: 1,900 (L) x 1,580 (W) x 1,620 (H) mm

  • Control: Programmable logic control of all movements.

  • Inverter to adjust machine speed.



VIDEO - CUTTING EPDM WASHER OUTPUT:600 PCS/MIN

VIDEO - SCREW 4.8X20 MM OUTPUT:600 PCS/MIN

VIDEO - SCREW 4.8x19 MM

VIDEO - SCREW 5.5x75 MM

VIDEO - 1.0 MM PE/PC WASHER

VIDEO - BOLT M8X65 MM

VIDEO - WITH PACKAGING UNIT FOR LARGE AMOUNT

VIDEO - WITH PACKAGING UNIT FOR SMALL AMOUNT







Features:

Taiwan New Patent No. 336355

  • Changing moulds to assemble different sizes of screw or washer.

  • Sensing for every process of machine motion, easy to operate and eliminate malfunction, and protect the safety for machinery and operator.

  • Sorting device for unassembled screw or washer.

  • New pressing screw head mechanism is by cam drive and springs(New Patent)that improves other brands machine`s pressing unit  by shunt valve and cylinder.

  • When the supply of screws or washers is late, the machine will stop automatically. After the feed tracks are full of screw and washer, the machine will be automatic movement.

  • Machine is in accordance with CE security rules.



機型
Model
螺絲外徑
Screw Diameter
螺絲長度
Screw Length
華司
Washer
組裝速度
Output
ZYB-85 4.8 / 5.5 / 6.3 mm 16~85 mm EPDM / PVC / 黏鐵華司
Rubber or Bonded EPDM Washer.
350~600 PCS/MIN
ZYB-125 4.8 / 5.5 / 6.3 mm 16~125 mm 250~450 PCS/MIN
Certificate:
  • CE
Order Information:
  • Minimum Order: 1 set
  • Branded Product
