Product

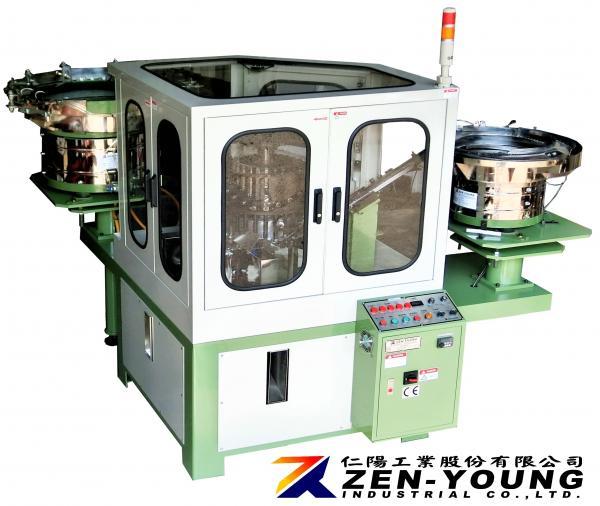

Bin Bolt & Washer Assembly Machine

Bin Bolt & Washer Assembly Machine

Bin Bolt & Washer Assembly Machine

Product ID: ZYLB

●Assembling LDPE / Bonded EPDM Washer.

After assembling, the washer will be close to the bottom of the screw head.

Specifications:
  • Motor power: 1/2HP

  • Dimension: 2,490 (L) x 2,370 (W) x 1,900 (H) mm

  • Net Weigh:1500 KGS

  • Control: Programmable logic control of all movements.

  • Inverter to adjust machine speed.



VIDEO - BIN BOLT 3/8" X 1-1/4"





Features:

Taiwan New Patent No. M423015

  • Changing molds to assemble different sizes of bolt or washer.

  • The continuous assembly mechanism works fast and steady.

  • 100%Sorting device for unassembled bolt or washer.

  • After assembling, the washer will be close to the bottom of the screw head.

  • When the supply of bolt or washer is late, the machine will stop automatically. After the feed tracks are full of bolt and washer, the machine will be automatic movement.

  • After long-term operation, the parts low wear and tear, you can save time and money in the future for maintenance.

  • Machine is in accordance with CE security rules.



機 型
Model
螺栓外徑
Bolt Diameter

螺絲長度
Bolt Length

華司
Washer

組裝速度
Output

ZYLB 5/16"~1/2" 3/4"~4"mm LDPE華司/ 橡膠華司
LDPE / EPDM Washer
250~400 PCS/MIN
Certificate:
  • CE
Order Information:
  • Minimum Order: 1 set
  • Branded Product
