Nail / Screw & Plastic / EPDM Washer Assembly Machine

Nail / Screw  & Plastic / EPDM Washer Assembly Machine

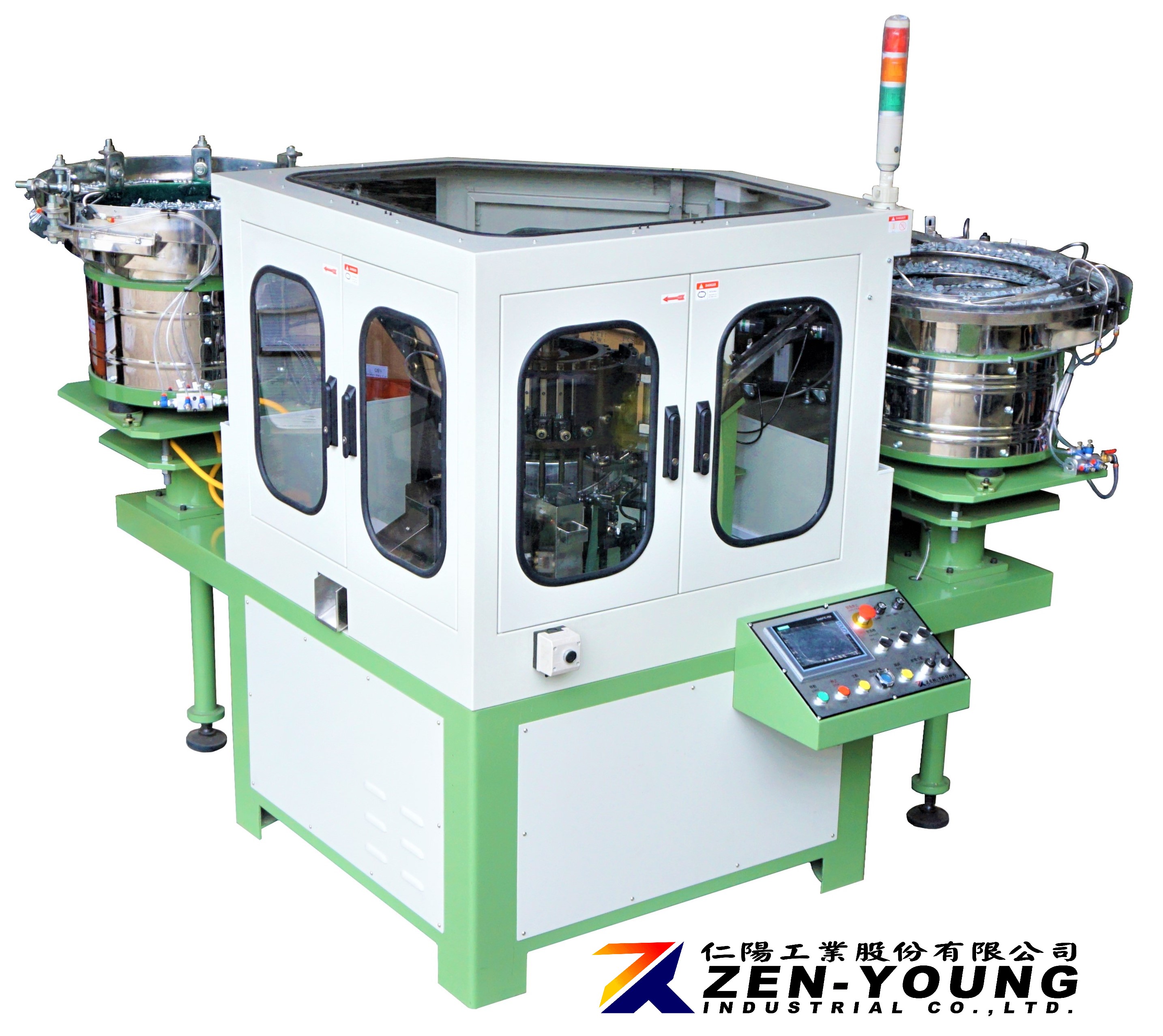

NAIL / SCREW & PLASTIC / EPDM WASHER ASSEMBLY MACHINE

Product ID: ZYLC

Newly patent machine  solves problem for bending nail or skew head of nails could not assemble automatically .

After assembling, the washer will be close to the bottom of the nail head.


Catalog Download: Download Now !

Specifications:
  • Motor power: 1/2HP

  • Dimension: 2,010 (L) x 2,100 (W) x 1,600 (H) mm

  • Net Weigh:1,330/1,460 KGS

  • Control: Programmable logic control of all movements.

  • Inverter to adjust machine speed.



VIDEO - PLASTIC WASHER

VIDEO - ROOFING NAIL ASSEMBLES WITH RUBBER WASHER





Features:



  • Changing molds to assemble different sizes of nail or washer.

  • Sensing for every process of machine motion, easy to operate and eliminate malfunction, and protect the safety for machinery and operator.

  • 100% Sorting device for unassembled nail or washer.

  • When the supply of nail or washer is late, the machine will stop automatically. After the feed tracks are full of nail and washer, the machine will be automatic movement.

  • After long-term operation, the parts low wear and tear, you can save time and money in the future for maintenance.

  • Machine is in accordance with CE security rules.





機 型
Model
釘子外徑
Nail
 Diameter
釘子長度
Nail
 Length
華司
Washer

組裝速度
Output

ZYLC-75 2.5~5.0mm 20~75 mm 黏鐵 / PVC/ 塑膠華司
Bonded EPDM / Plastic Washer
250~480 PCS/MIN
ZYLC-125 20~125 mm 200~450 PCS/MIN
Certificate:
  • CE
Order Information:
  • Minimum Order: 1 set
  • Branded Product
