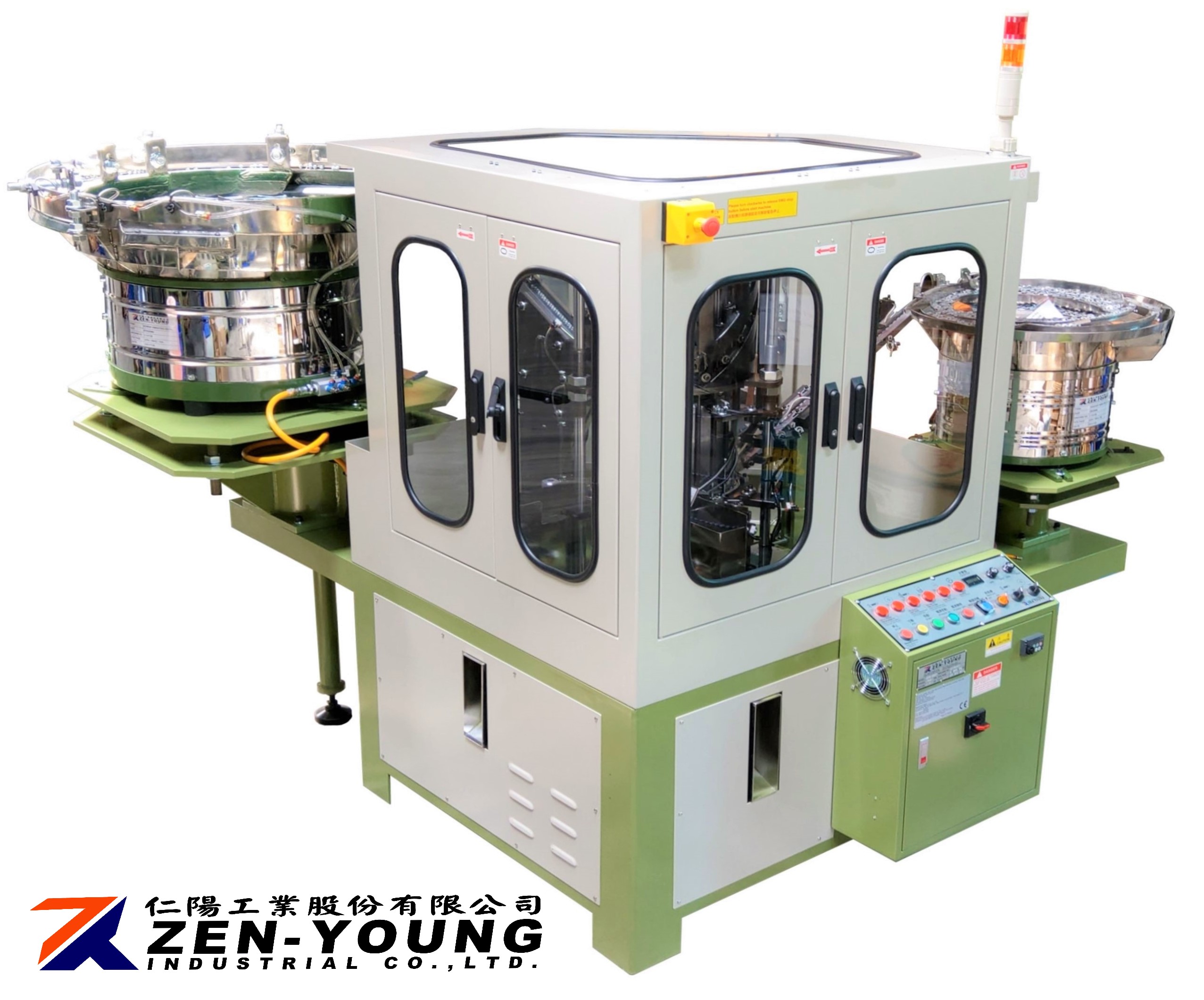

Long Self - Drilling / Tapping Screw & Bonded / BAZ Umbrella Washer Assembly Machine

Long Self - Drilling / Tapping Screw &  Bonded / BAZ Umbrella Washer Assembly Machine

Long Self-Drilling / Tapping Screw & Washer Assembly Machine

Product ID: ZYL

Newly patent machine  solves problem for long bending screws could not assemble automatically .

● Different kind of washer (BAZ, PVC, EPDM and bonded washer)
can replace mold to assemble.

After assembling, the washer will be close to the bottom of the screw head.


Catalog Download: Download Now !

Specifications:



  • Motor power: 1/2HP( ZYL-75/125),  1HP(ZYL-250/300)

  • Dimension: 2,480 (L) x 2,360 (W) x 1,900 (H) mm

  • Net Weigh:1350/1480/1,800/2,200 KGS

  • Control: Programmable logic control of all movements.

  • Inverter to adjust machine speed.



MODEL: ZYL-75

VIDEO - SCREW 4.8X20 MM WITH PVC WASHER

VIDEO - SCREW 4.8X19 MM

VIDEO - OVAL HEAD SCREW WITH M-TYPE WASHER

VIDEO - ZDC CAPPED SCREW 5.5X35 MM



MODEL: ZYL-125

VIDEO - SCREW 4.8X20 MM

VIDEO - SCREW 6.3X100 MM



MODEL: ZYL-250

VIDEO - SCREW 5.5X65 MM

VIDEO - SCREW 5.5X85 MM WITH PVC WASHER

VIDEO - SCREW 5.5X100 MM OUTPUT: 460 PCS/MIN

VIDEO - SCREW 5.5X135 MM

VIDEO - SCREW 5.5X240 MM

VIDEO - BAZ WASHER

VIDEO - NYLON HEAD SCREW

VIDEO - WITH EXIT CONVEYER

VIDEO - WITH BOX PACKAGING MACHINE



MODEL: ZYL-300

VIDEO - SCREW 6.5X300 MM



Features:

Taiwan New Patent No. M423015


  • Changing molds to assemble different sizes of screw or washer.

  • The continuous assembly mechanism works fast and steady.

  • 100% sorting device for unassembled screw or washer.

  • This assembling type is able to assemble screws with wing and bending screws (cause of heating treatment)and skew head of screw.

  • When the supply of screw or washer is late, the machine will stop automatically. After the feed tracks are full of screw and washer, the machine will be automatic movement.

  • After long-term operation, the parts low wear and tear, you can save time and money in the future for maintenance.

  • Machine is in accordance with CE security rules.



機型
Model
螺絲外徑
Screw Diameter
螺絲長度
Screw Length
華司
Washer
組合速度
Output
ZYL-75 4.8/5.5/6.3 mm 19~75 mm  黏鐵 / PVC/ 碗型華司
Bonded EPDM / PVC /BAZ Washer
300~520 PCS/MIN
ZYL-125 4.8/5.5/6.3 mm 19~125 mm 280~500 PCS/MIN
ZYL-250 4.8/5.5/6.3 mm 50~250 mm 150~450 PCS/MIN
ZYL-300 4.8/5.5/6.3 mm 50~300 mm 100~400 PCS/MIN
Certificate:
  • CE
Order Information:
  • Minimum Order: 1 set
  • Branded Product
