Product

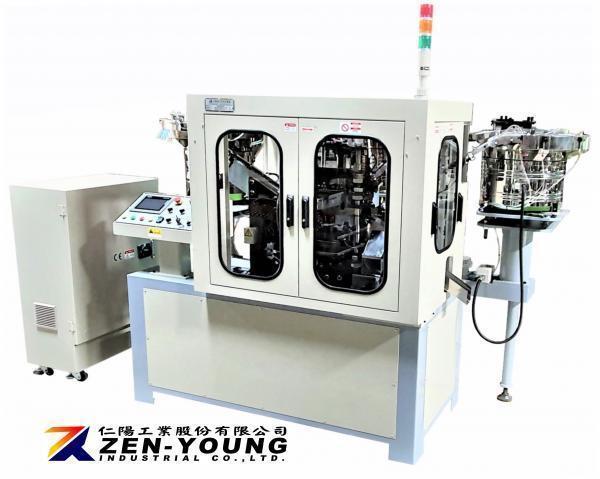

Screw & 2 Pieces Washer Assembly Machine

Screw & 2 Pieces Washer Assembly Machine

Screw & 2 Pieces Washer Assembly Machine

Product ID: ZYB3

2 modes for assembling 1 or 2 pieces washer.

Specifications:
  • Motor power: 1/2 HP

  • Dimension: 2,570 (L) x 1,720 (W) x 1,620 (H) mm

  • Control: Programmable logic control of all movements.

  • Inverter to adjust machine speed.



VIDEO - PE WASHER + EPDM WASHER

VIDEO - METAL WASHER + EPDM WASHER



Features:

Taiwan New Patent No. 336355

  • 2 modes for assembling 1 or 2 pieces washer.

  • Changing moulds to assemble different sizes of screw or washer.

  • Sorting device for unassembled screw or washer.

  • Sensing for every process of machine motion, easy to operate and eliminate malfunction, and protect the safety for machinery and operator.

  • New pressing screw head mechanism is by cam drive (New Patent)that improves old pressing unit by shunt valve and cylinder.

  • When the supply of screws or washers is late, the machine will stop automatically. After the feed tracks are full of screws and washers, the machine will be automatic movement.

  • Machine is in accordance with CE security rules.
機 型
Model
螺絲外徑
Screw diameter
螺絲長度
Screw length
橡膠華司
EPDM Washer
鐵片華司
Metal Washer
組裝速度
Output
ZYB3-85 4.8/5.5/6.3 mm 16-85 mm

依客戶需求

As Demand

依客戶需求

As Demand

350-550 PCS/MIN
ZYB3-125 4.8/5.5/6.3 mm 16-125 mm

依客戶需求

As Demand

依客戶需求

As Demand

250-450 PCS/MIN
Certificate:
  • CE
Order Information:
  • Minimum Order: 1 set
  • Branded Product
