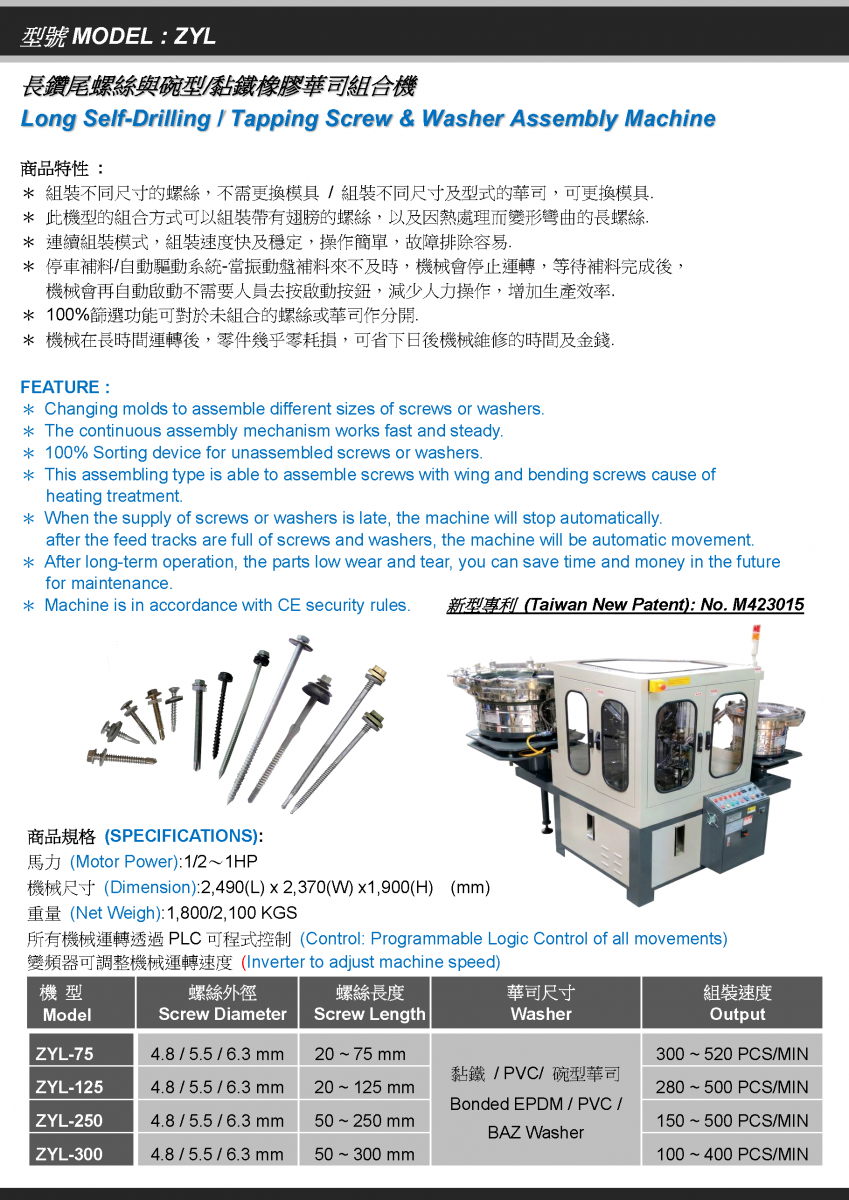

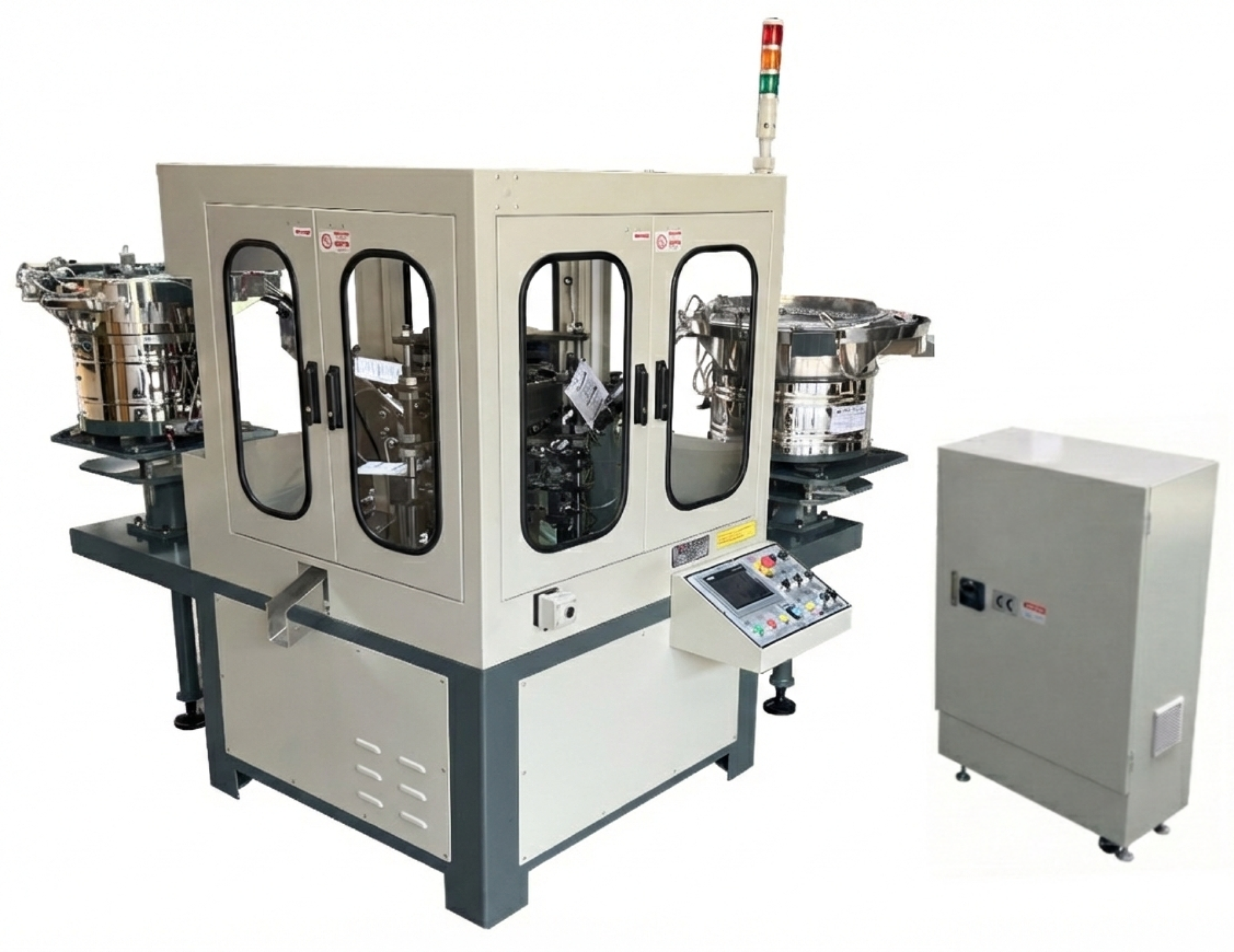

Long Self - Drilling / Tapping Screw & Bonded / BAZ Umbrella Washer Assembly Machine

Type:ZYL

Motor power: 1/2HP( ZYL-75/125), 1HP(ZYL-250/300)
Dimension: 2,490 (L) x 2,370 (W) x 1,900 (H) mm
Net Weigh:1,350/1,480/1,800/2,200 KGS
Control: Programmable logic control of all movements.
Inverter to adjust machine speed.

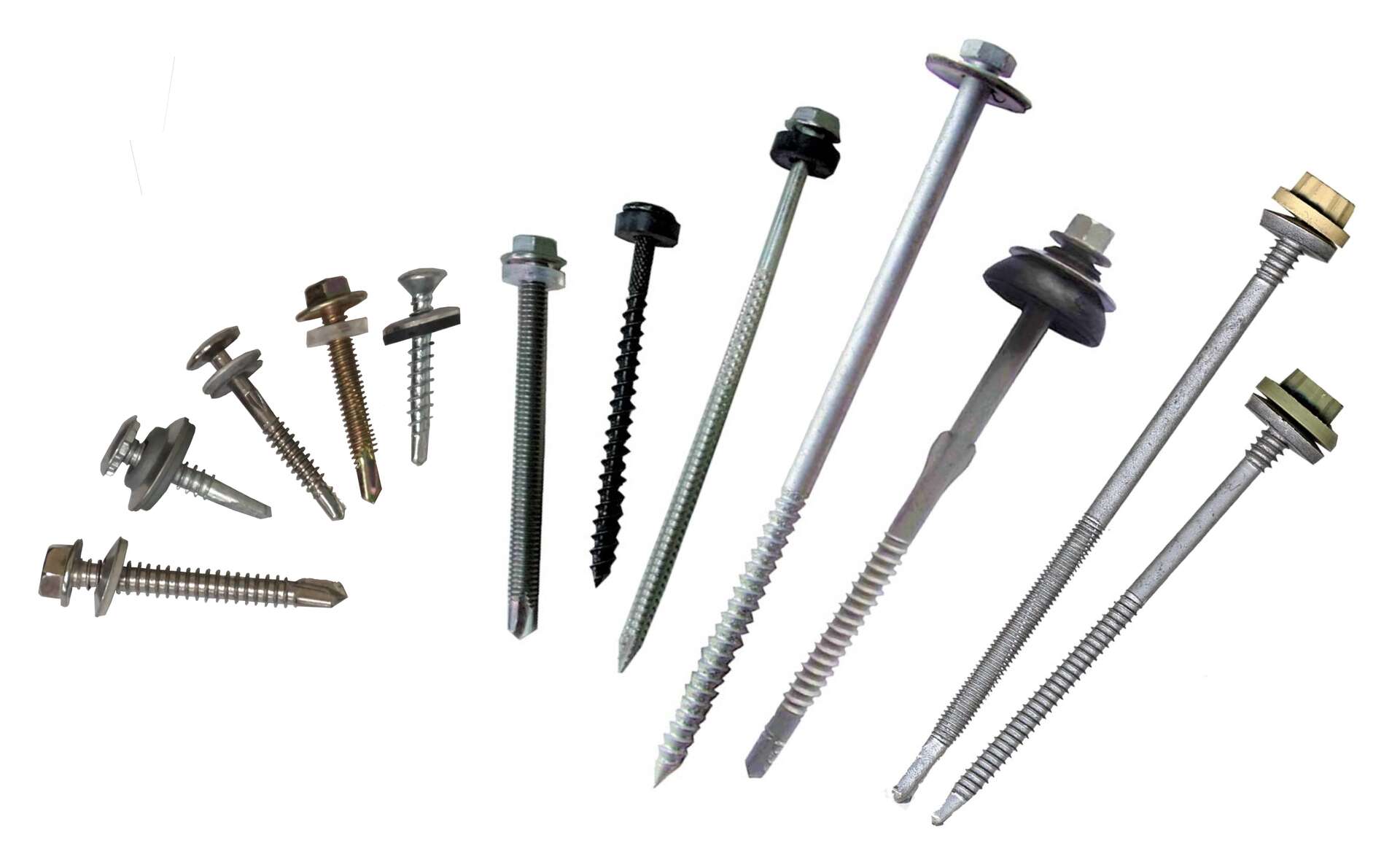

● Different kind of washer (BAZ, PVC, EPDM and bonded washer)
can replace mold to assemble.

● After assembling, the washer will be close to the bottom of the screw head.

Add to Inquiry Cart

Category： Self-Drilling Screw / Bolt / Nail & Washer Assembly Machine Series

Taiwan New Patent No. M423015

Interchangeable Tooling Design: The mold sets are changeable, allowing for the assembly of various sizes and types of screws and washers.

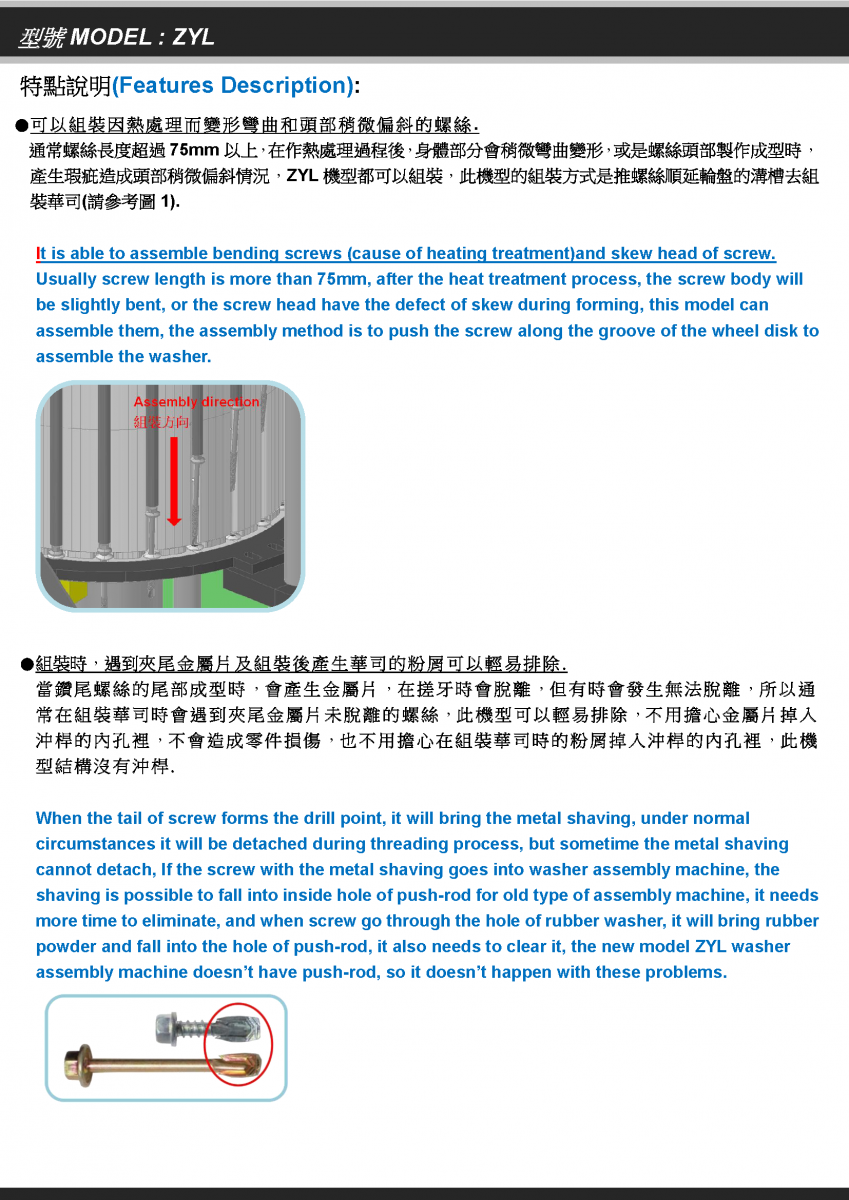

dvanced Assembly Mechanism for Irregular Parts: Specially designed to handle difficult fasteners. It effectively assembles screws with wings and long screws that are bent or deformed due to heat treatment.
High-Speed Continuous Assembly: Features a continuous assembly mode for fast and stable operation. The user-friendly design allows for easy operation and troubleshooting.
Smart Auto-Standby & Restart System: The machine automatically pauses when the feeding supply is insufficient. Once replenished, it resumes operation automatically without the need for a manual restart. This reduces labor requirements and increases production efficiency.
100% Quality Sorting: Equipped with a 100% sorting function that automatically identifies and separates unassembled parts to ensure zero defects.
Ultra-Low Wear & Durability: Designed for long-term durability with near-zero component wear, significantly saving time and costs on future maintenance.
