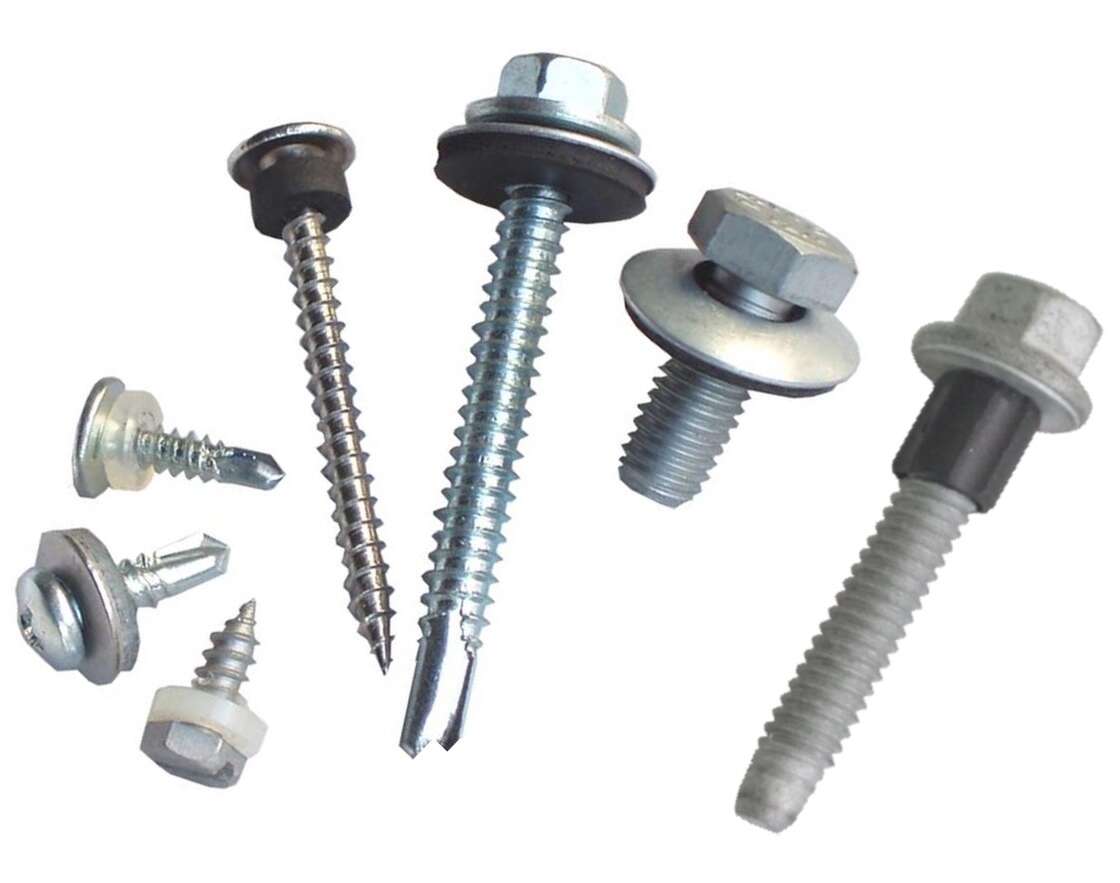

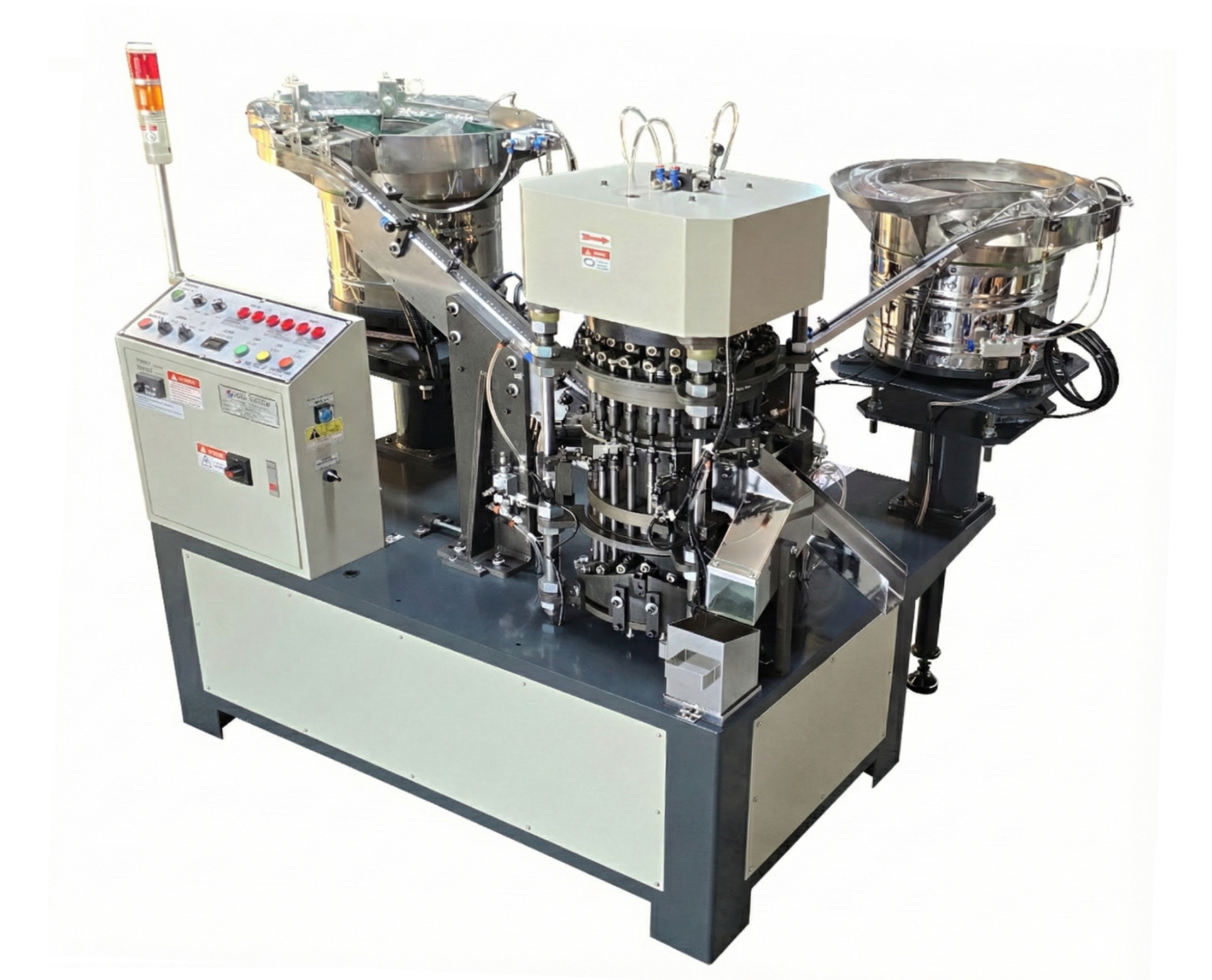

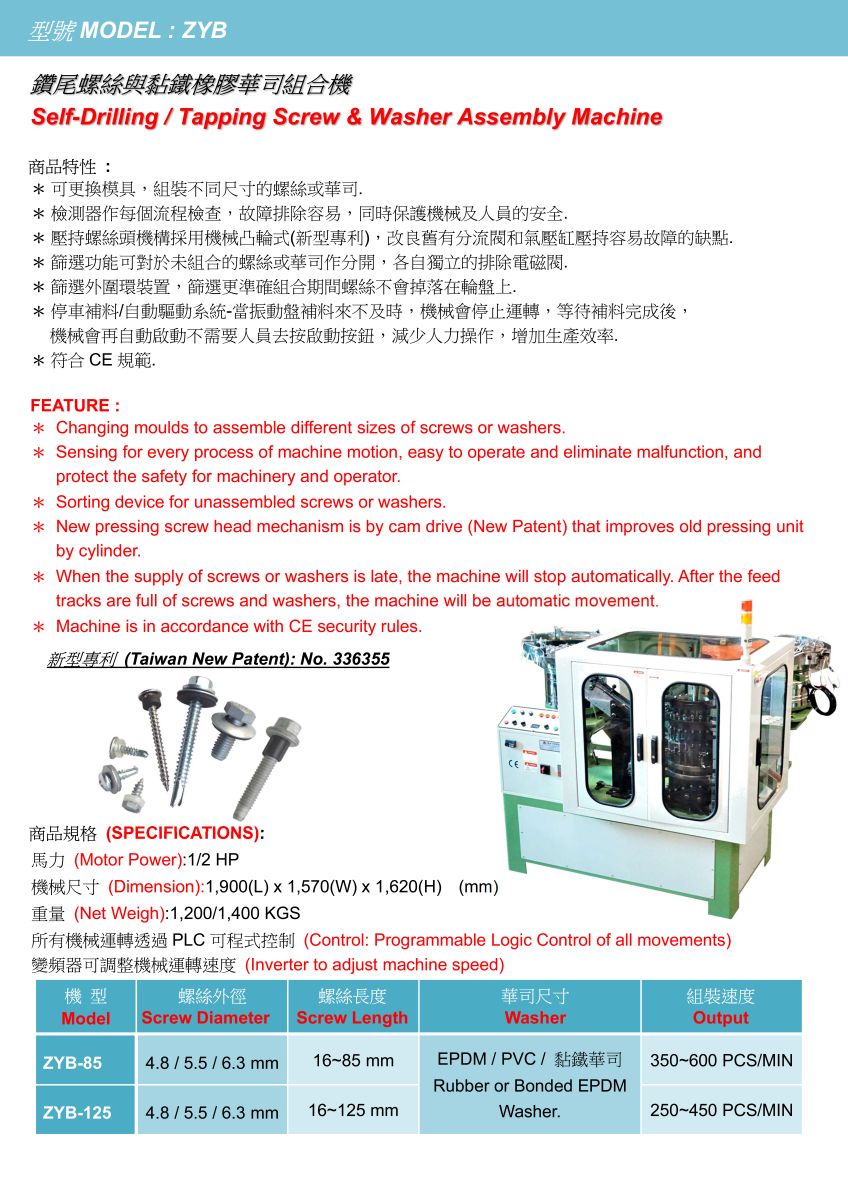

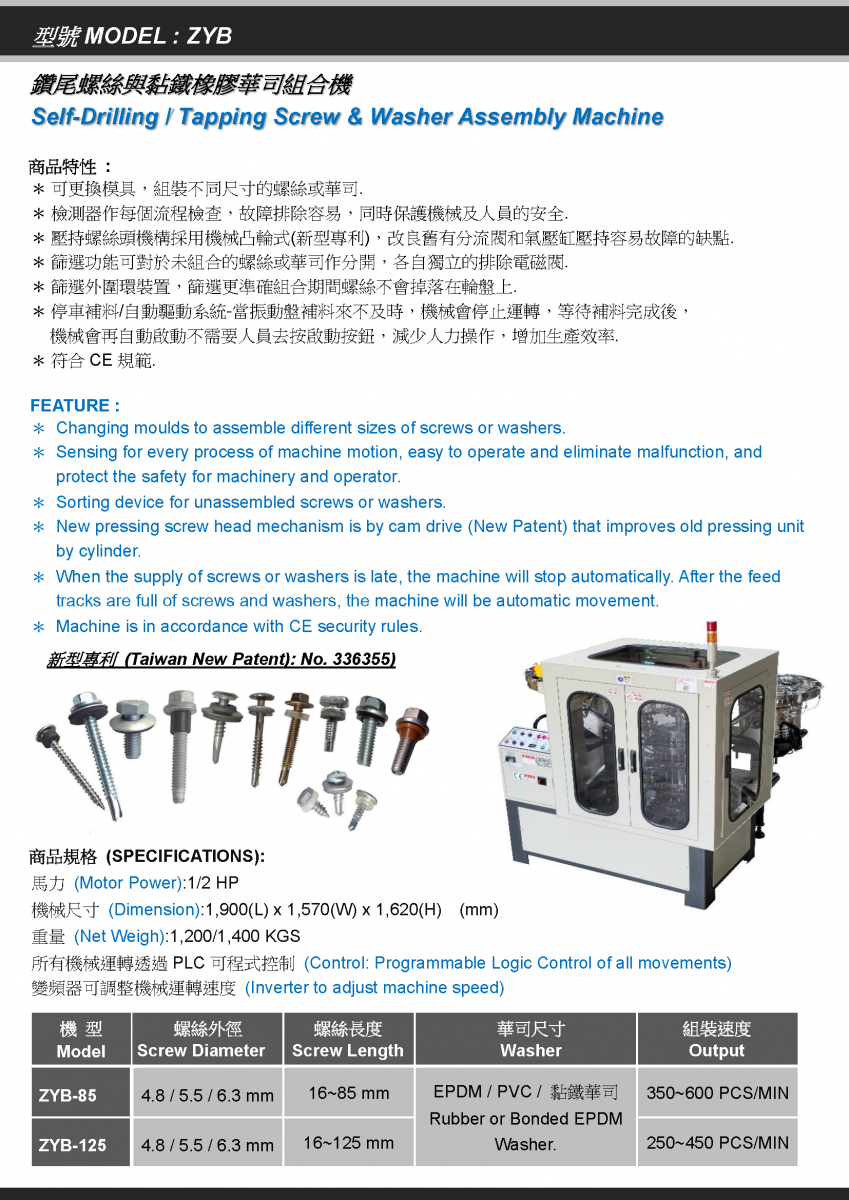

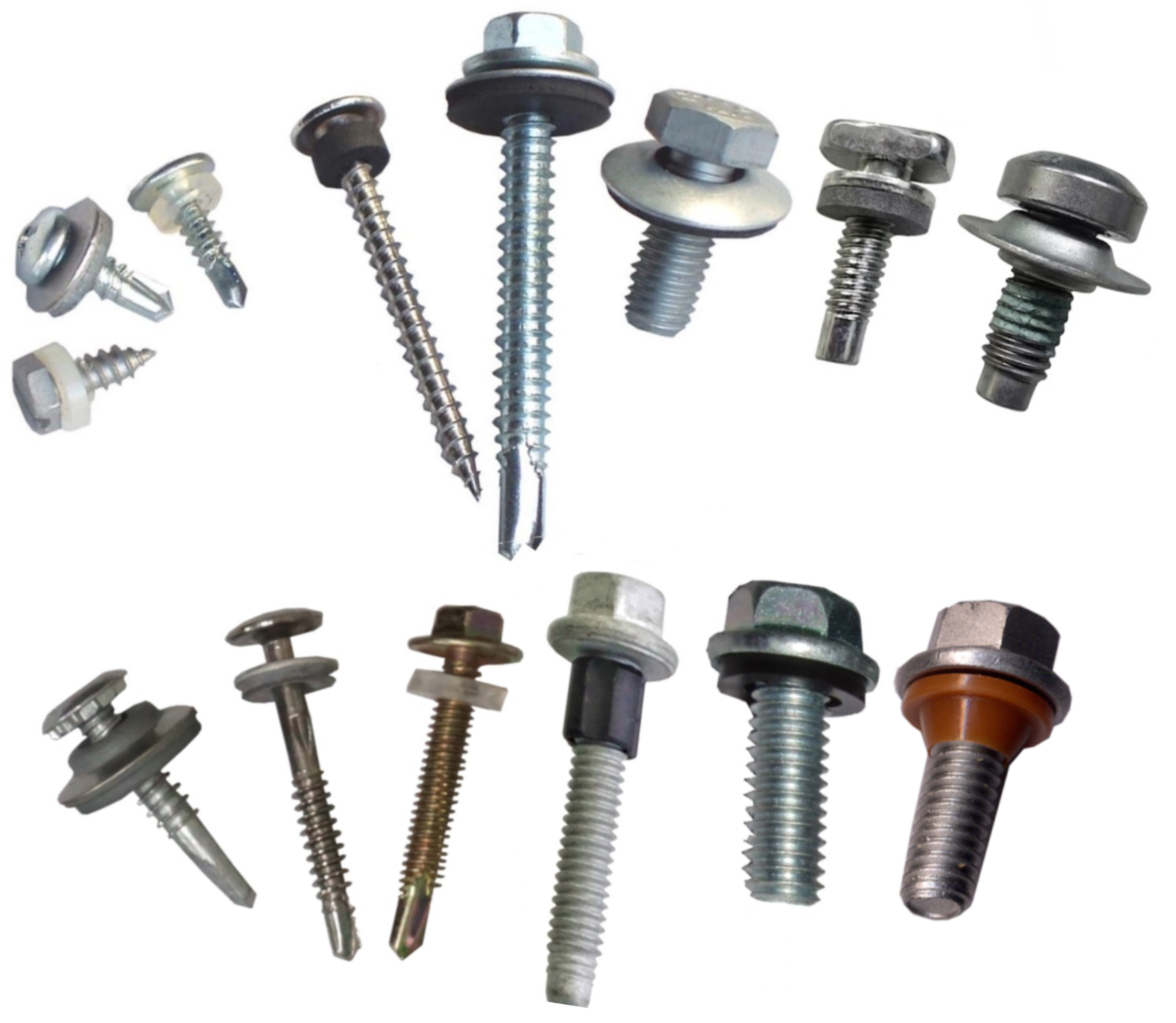

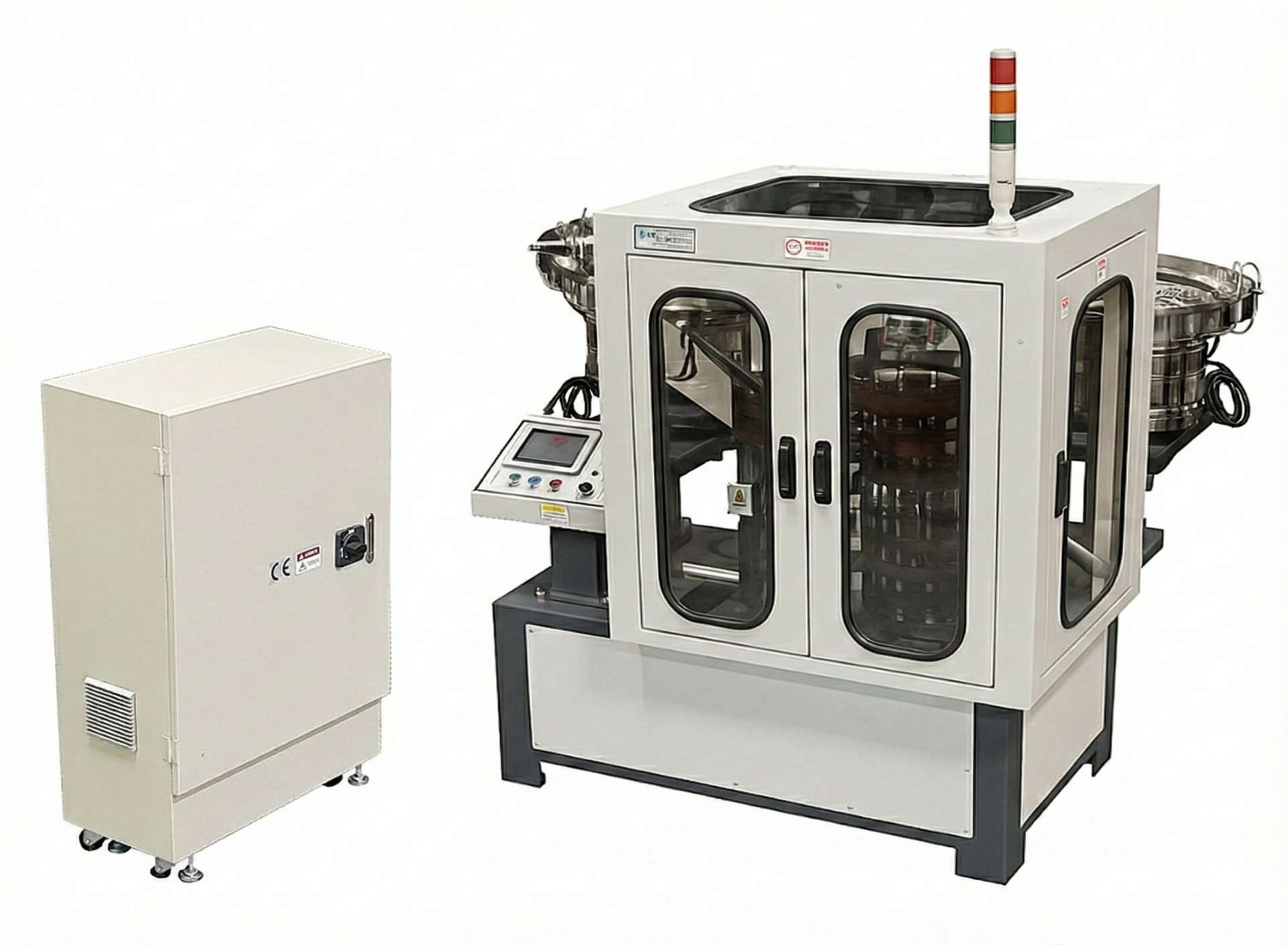

Self - Drilling Screw / Bolt & Washer Assembly Machine

Type:ZYB

Motor power: 1/2 HP
Dimension: 1,900 (L) x 1,570 (W) x 1,620 (H) mm
Net Weight : 1,200/1,400 KGS
Control: Programmable logic control of all movements.
Inverter to adjust machine speed.

Add to Inquiry Cart

Category： Self-Drilling Screw / Bolt / Nail & Washer Assembly Machine Series

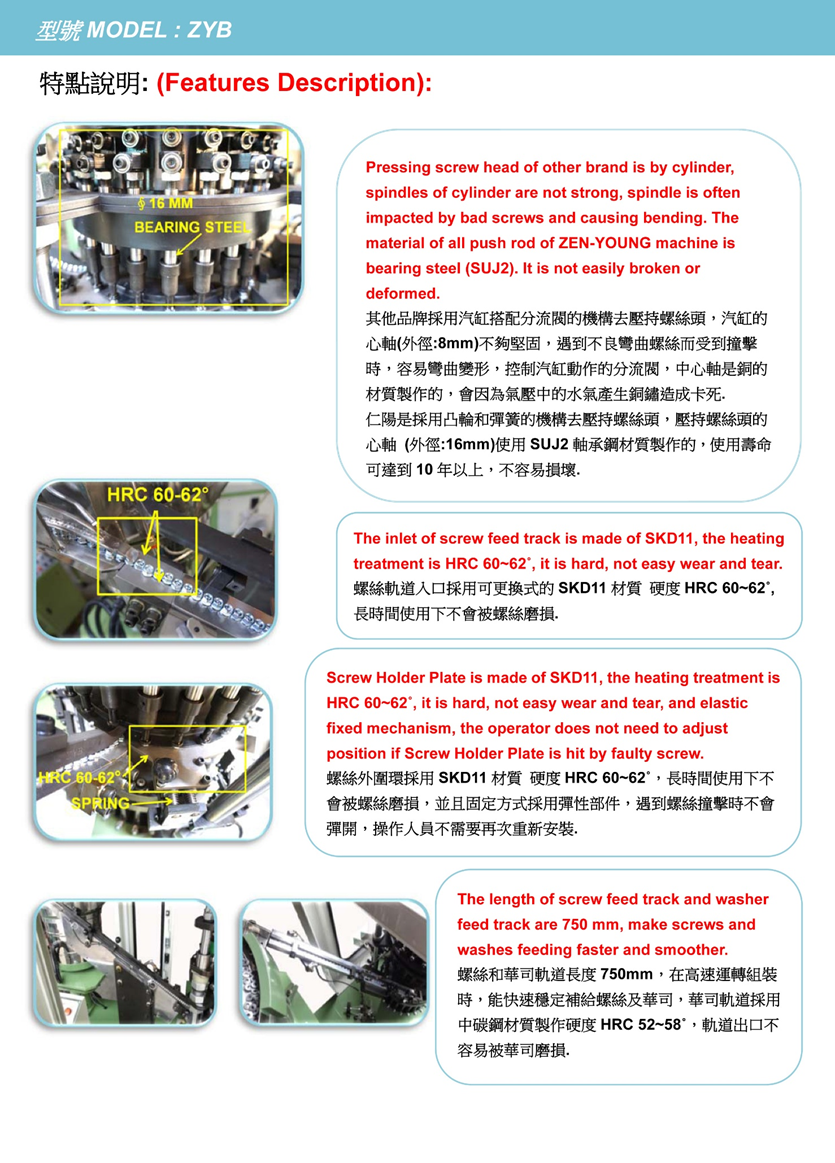

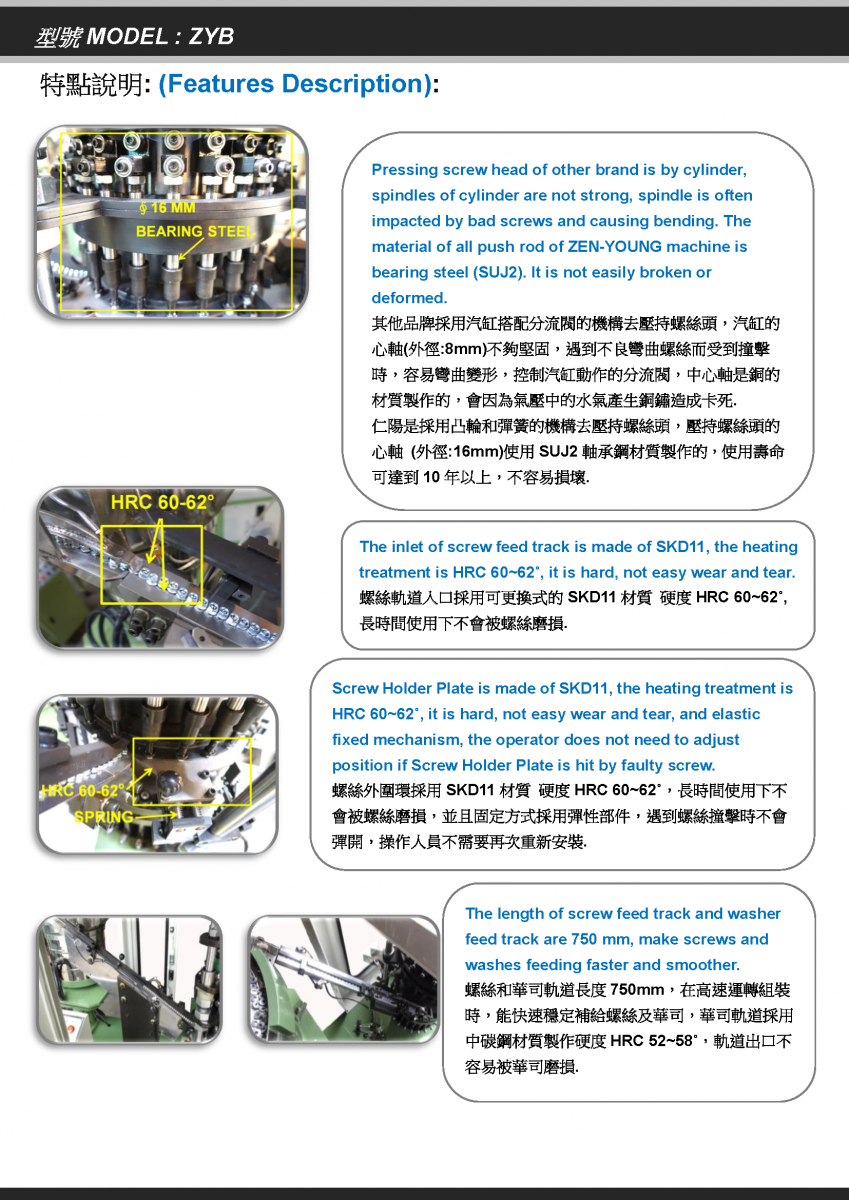

Interchangeable Tooling Design: The mold sets are changeable, allowing for the assembly of various screw and washer sizes to maximize production versatility.

Full-Process Sensor Monitoring: Equipped with sensors at every stage to monitor workflow. This ensures easy troubleshooting and guarantees the safety of both the operator and the machine.

Patented Mechanical Cam Hold-Down Mechanism: Features a new patented mechanical cam design for the screw head hold-down system. This replaces traditional diverter valves and pneumatic cylinders, significantly reducing failure rates and improving stability.

Independent Sorting & Rejection System: Unassembled screws and washers are automatically identified and separated by independent solenoid valves to ensure high-quality output.

Precision Outer Ring Sorting Device: The specialized outer ring design ensures accurate sorting and prevents screws from falling onto the rotary dial during the assembly process.

Smart Auto-Standby & Restart System: The machine automatically pauses when the feeding supply is insufficient. Once refilled, it resumes operation automatically without the need for a manual restart button. This reduces labor requirements and increases production efficiency.

CE Compliance: Designed and manufactured in compliance with CE safety standards.
