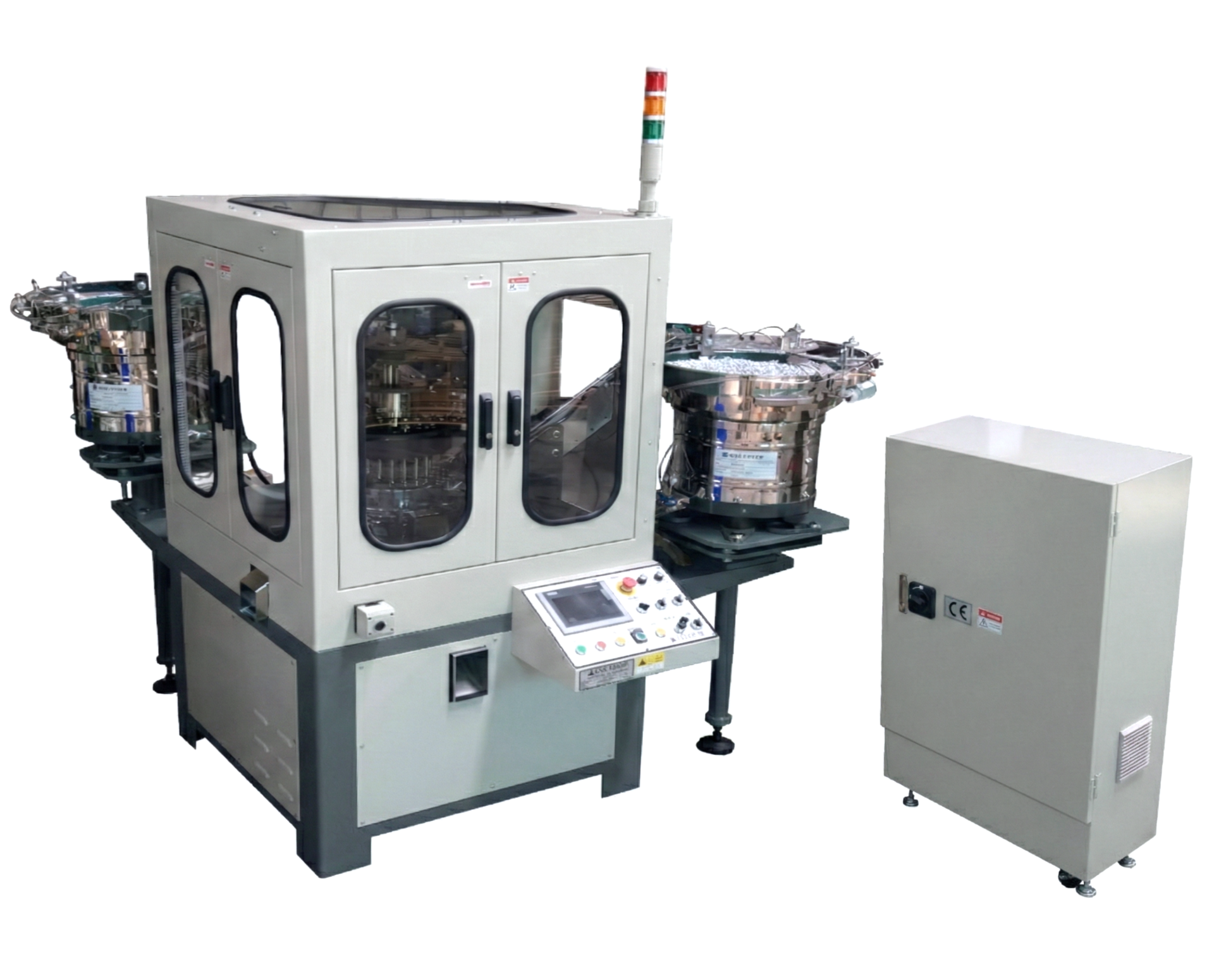

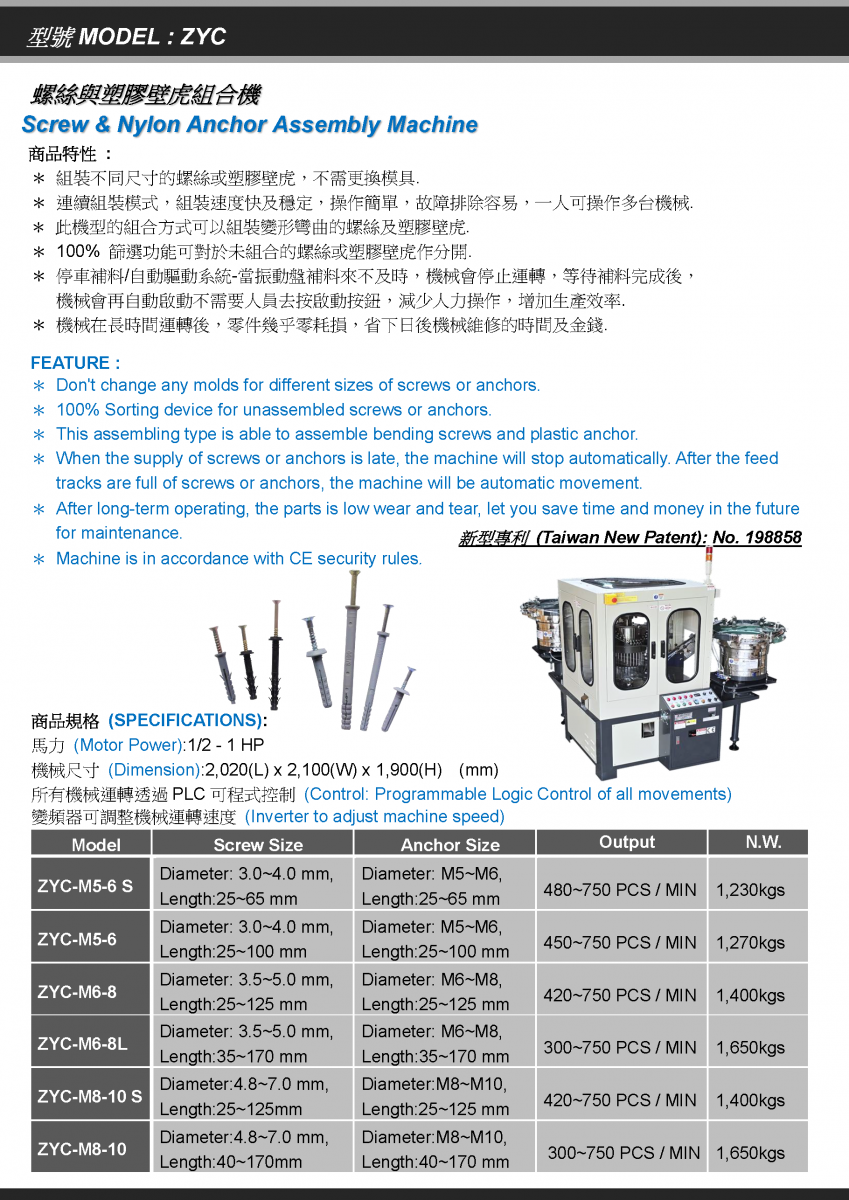

Screw & Nylon Anchor Assembly Machine
Type:ZYC
Motor power: 1/2 / 1 HP
Dimension: 1,950 (L) x 2,100 (W) x 1,900 (H) mm
Control: Programmable logic control of all movements.
Inverter to adjust machine speed.
• Continuous assembly mode, fast and stable assembling, operation and troubleshooting easy, simple mechanism can be to create a highly assembling speed.
• This type of assembly machine is able to assemble slight bending of screw and anchor.
.
Taiwan New Patent No. 198858

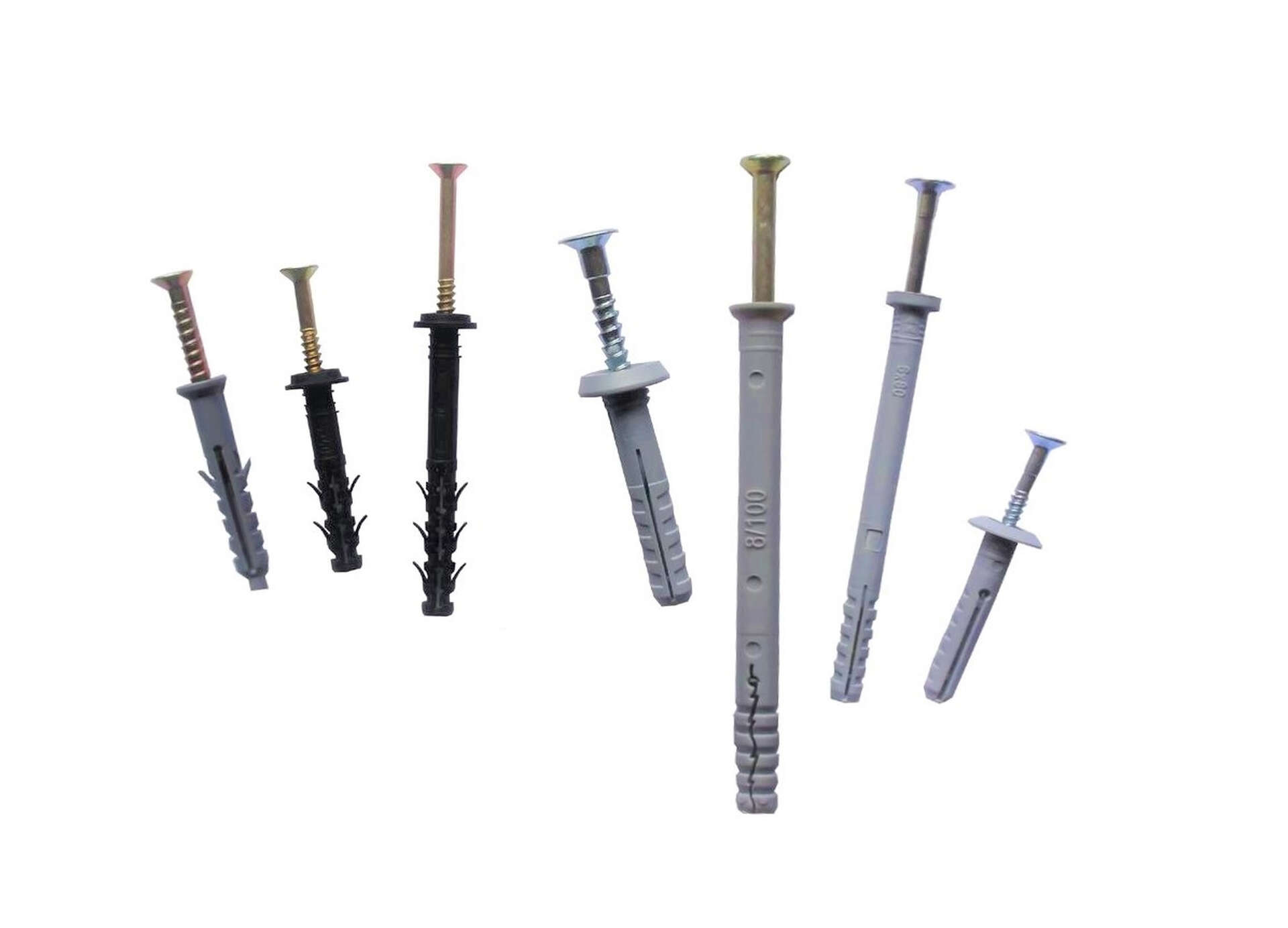

Universal Tooling Design (No Mold Change): Capable of assembling various sizes of screws and plastic anchors without the need to change molds, maximizing uptime and versatility.
High-Speed Continuous Assembly: Features a continuous assembly mode for fast and stable operation. The user-friendly design allows for easy troubleshooting, enabling a single operator to manage multiple machines simultaneously.
High Tolerance for Deformed Parts: The specialized assembly mechanism is capable of handling and assembling even slightly bent or deformed screws and plastic anchors.
100% Quality Sorting: Equipped with a 100% sorting function that automatically identifies and separates unassembled parts to ensure zero defects in the final output.
Smart Auto-Standby & Restart System: The machine automatically pauses when the feeding supply is insufficient. Once the supply is replenished, it resumes operation automatically without manual restart. This reduces labor requirements and boosts efficiency.
Ultra-Low Wear & Durability: Designed for long-term durability with near-zero component wear, significantly saving time and costs on future maintenance.
