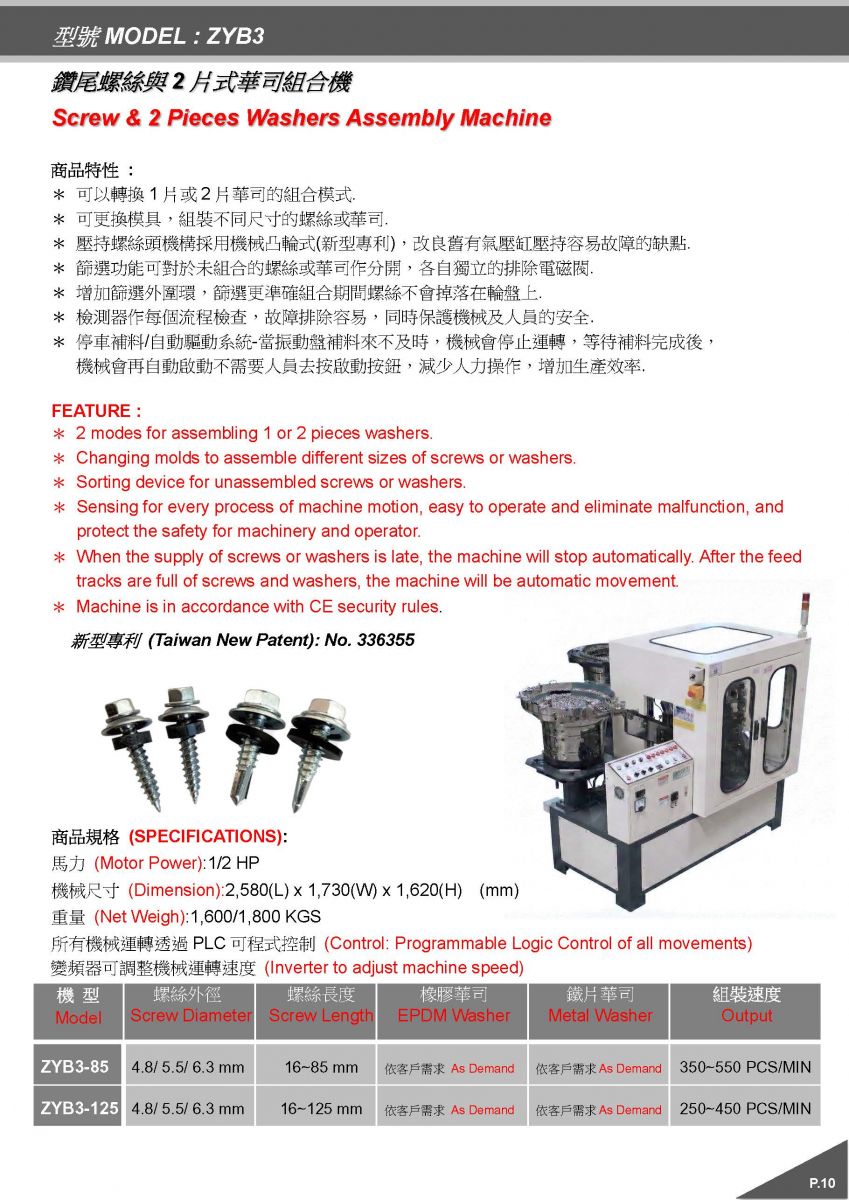

Screw & 2 Pieces Washer Assembly Machine
Type:ZYB3
Motor power: 1/2 HP
Dimension: 2,570 (L) x 1,720 (W) x 1,620 (H) mm
Control: Programmable logic control of all movements.
Inverter to adjust machine speed.
2 modes for assembling 1 or 2 pieces washer.
Taiwan New Patent No. 336355
● 2 modes for assembling 1 or 2 pieces washer.
● Changing moulds to assemble different sizes of screw or washer.
● Sorting device for unassembled screw or washer.
● Sensing for every process of machine motion, easy to operate and eliminate
malfunction, and protect the safety for machinery and operator.
● New pressing screw head mechanism is by cam drive (New Patent)that improves
old pressing unit by shunt valve and cylinder.
● When the supply of screws or washers is late, the machine will stop
automatically. After the feed tracks are full of screws and washers, the
machine will be automatic movement.
● Machine is in accordance with CE security rules.
