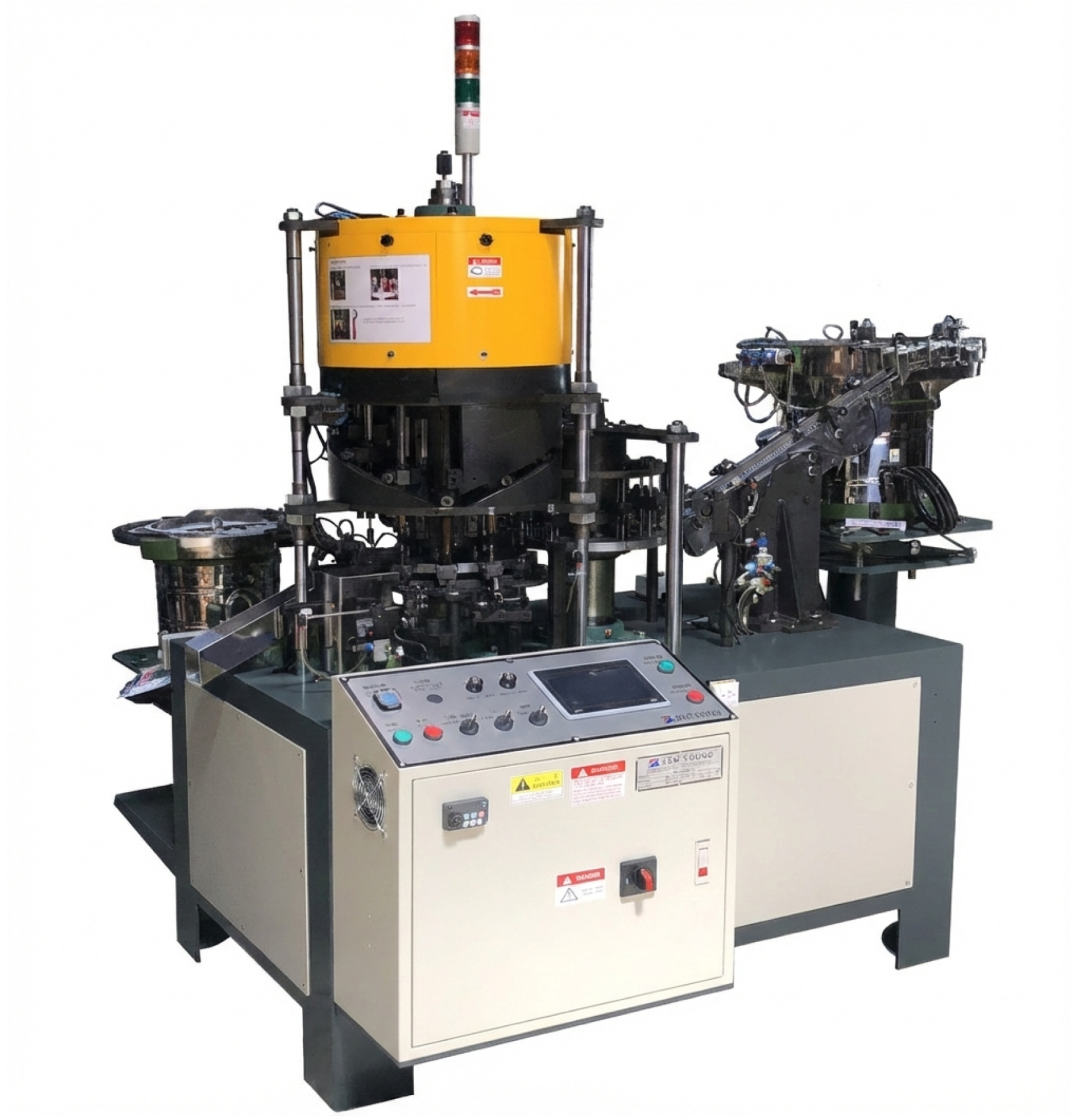

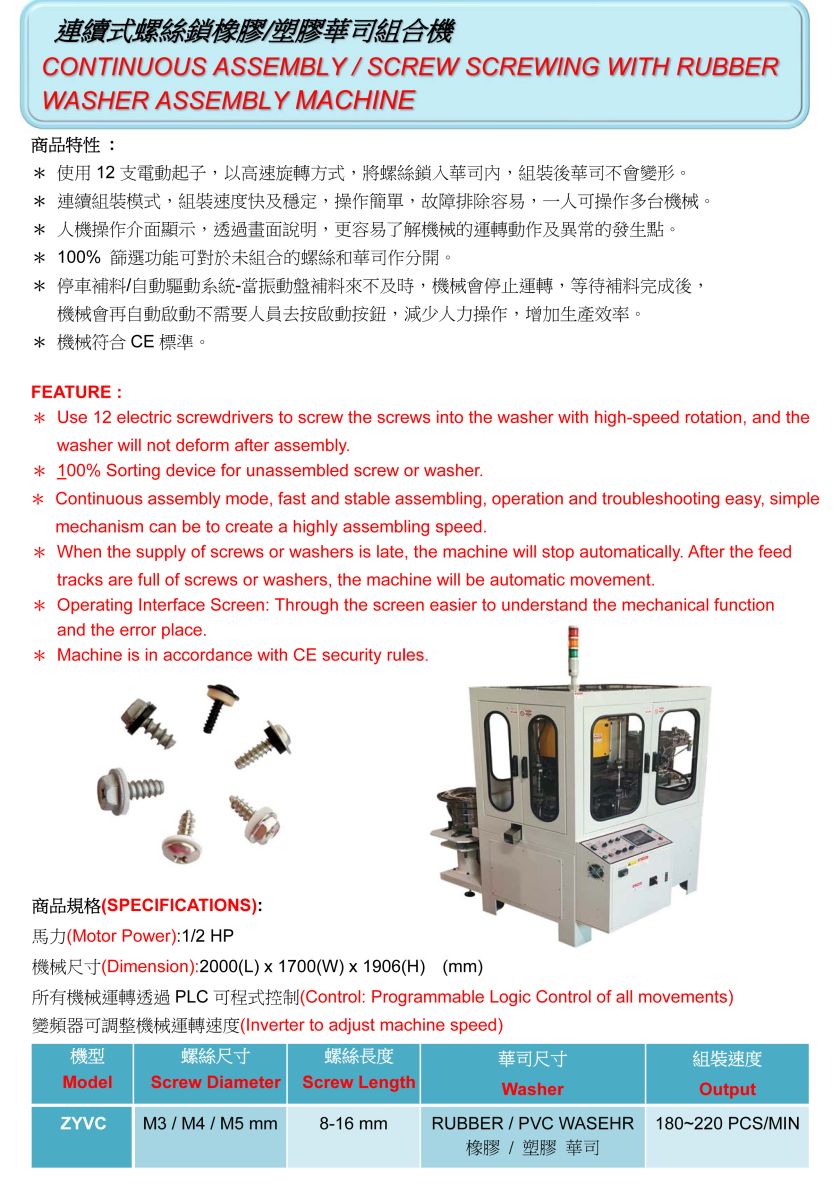

Continuous Assembly / Screw Screwing With Plastic / Rubber Washer Assembly Machine
Type:ZYVC
Motor power: 1/2 HP.
Dimension: 2,000 (L) x 1,700 (W) x 1,906 (H) mm.
Control: Programmable logic control of all movements.
Inverter to adjust machine speed.

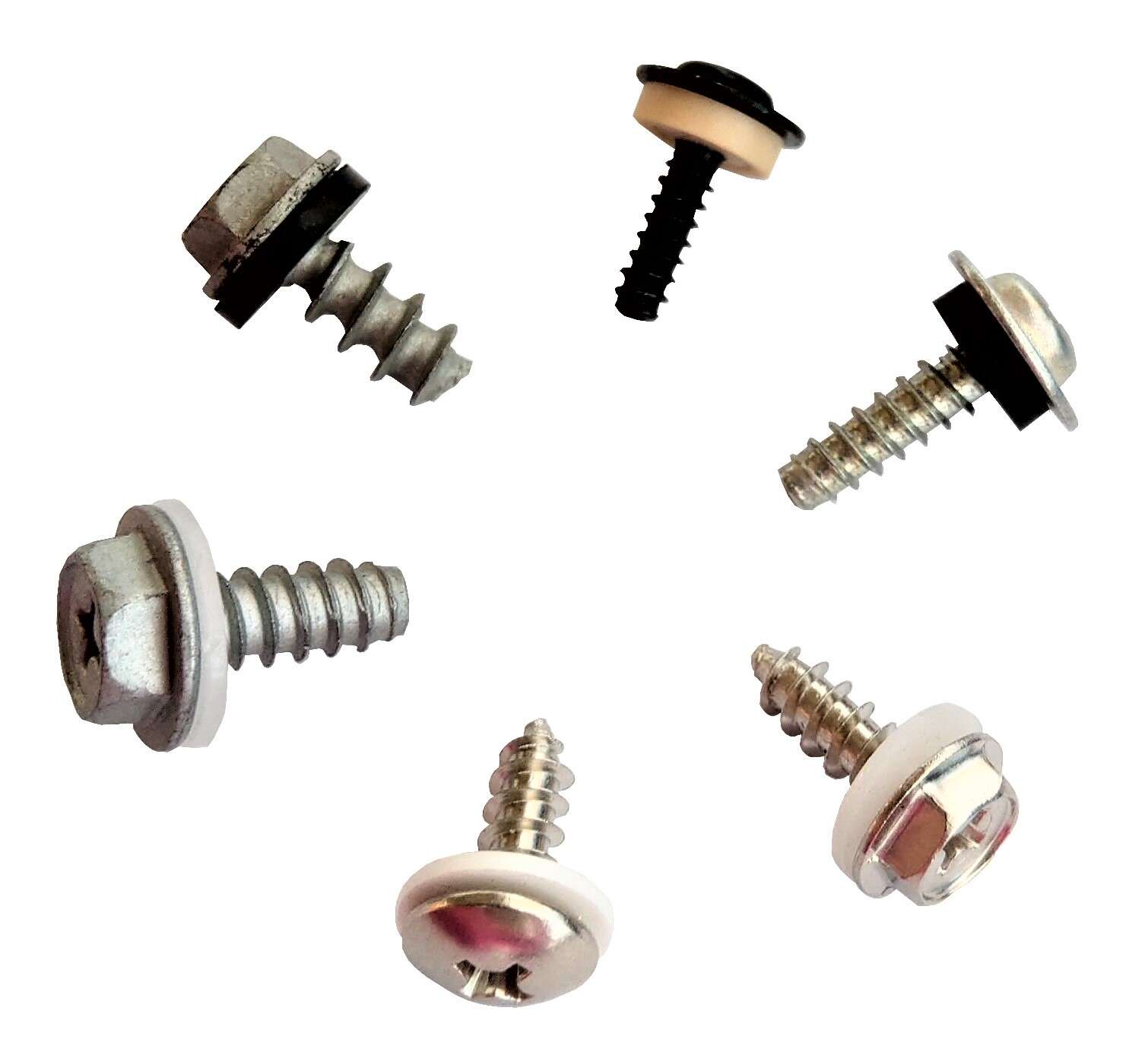

● Use 12 electric screwdrivers to screw the screws into the washer with high-speed
rotation, and the washer will not deform after assembly.
● Continuous assembly mode, fast and stable assembling, operation and
troubleshooting easy, simple mechanism can be to create a highly assembling
speed.
● Sorting device for unassembled screw or washer.
● Operating Interface Screen: Through the screen easier to understand themechanical functionand the error place.
● When the supply of screws or washers is late, the machine will stop automatically.
After the feed tracks are full of screw and washer, the machine will be automatic
movement.
