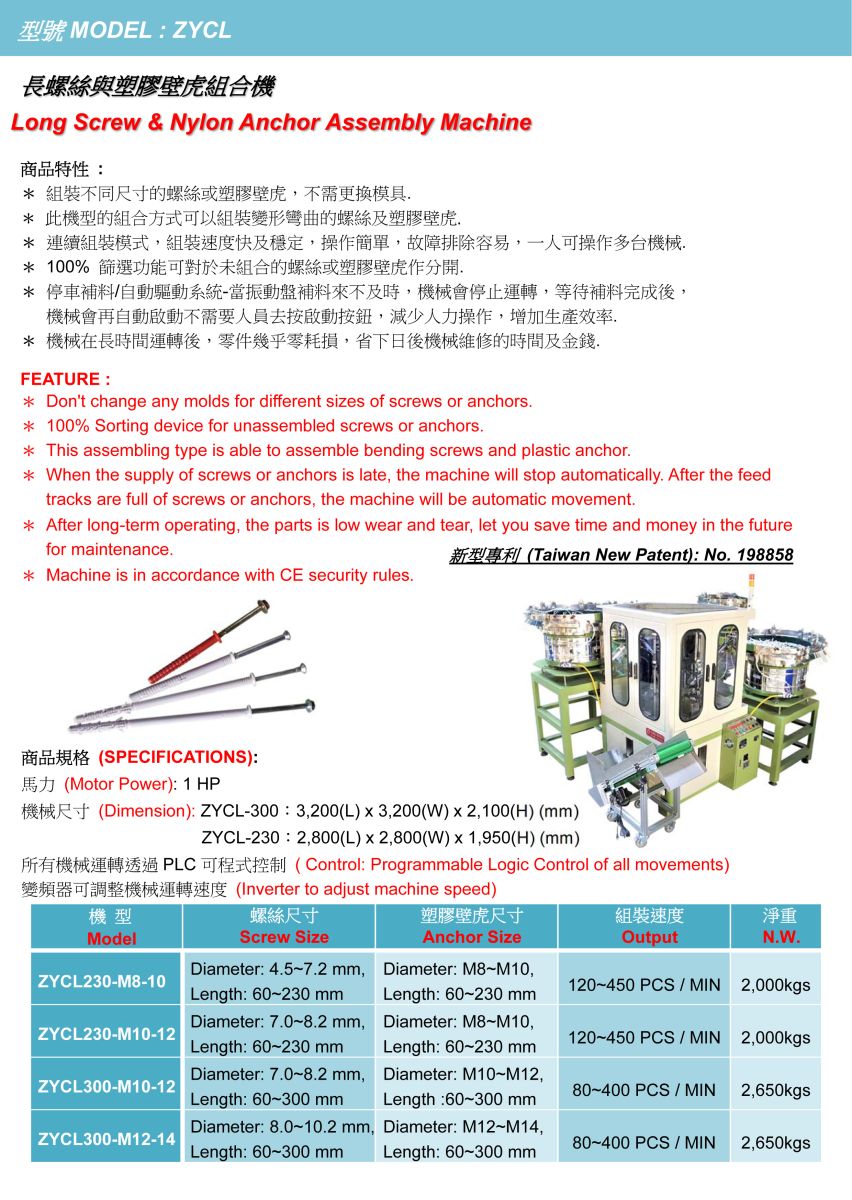

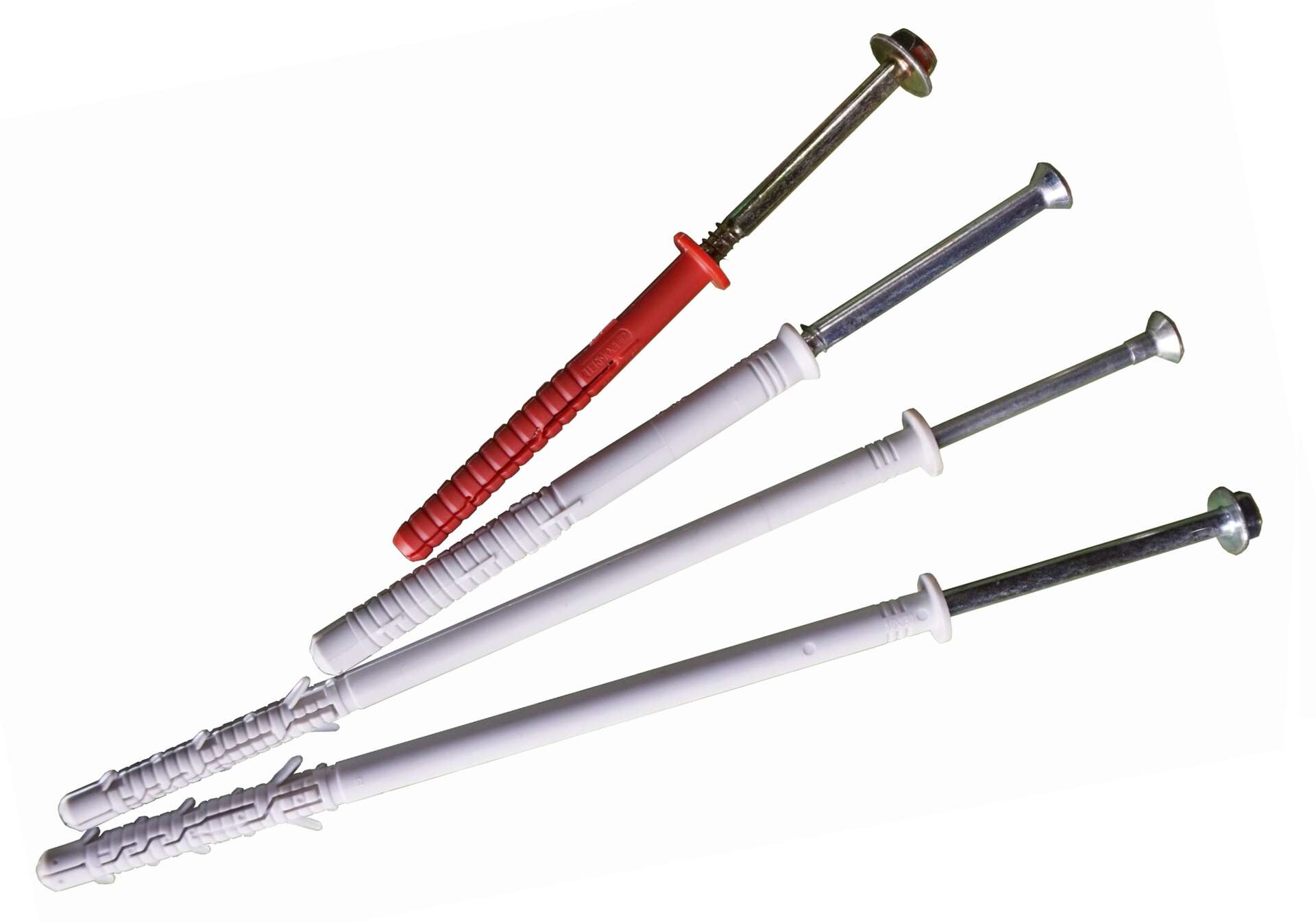

Long Screw & Nylon Anchor Assembly Machine
Type:ZYCL
Motor power: 1 HP
Dimension:
ZYCL-300：3,200(L) x 3,200(W) x 2,100(H) (mm)
ZYCL-230：2,800(L) x 2,800(W) x 1,950(H) (mm)
Control: Programmable logic control of all movements.
Inverter to adjust machine speed.
• Continuous assembly mode, fast and stable assembling, operation and troubleshooting easy, simple mechanism can be to create a highly assembling speed.
• This type of assembly machine is able to assemble slight bending of screw and anchor.
.
Taiwan New Patent No. 198858
● Don't to change any molds for different sizes of screw or anchor.
● 100% Sorting device for unassembled screw or anchor.
● This assembling type is able to assemble bending screws and plastic anchor.
● When the supply of screws or anchors is late, the machine will stop automatically.
After the feed tracks are full of screws or anchors, the machine will be automatic
movement.
● After long-term operating, the parts is low wear and tear, let you save time and
money in the future for maintenance.
