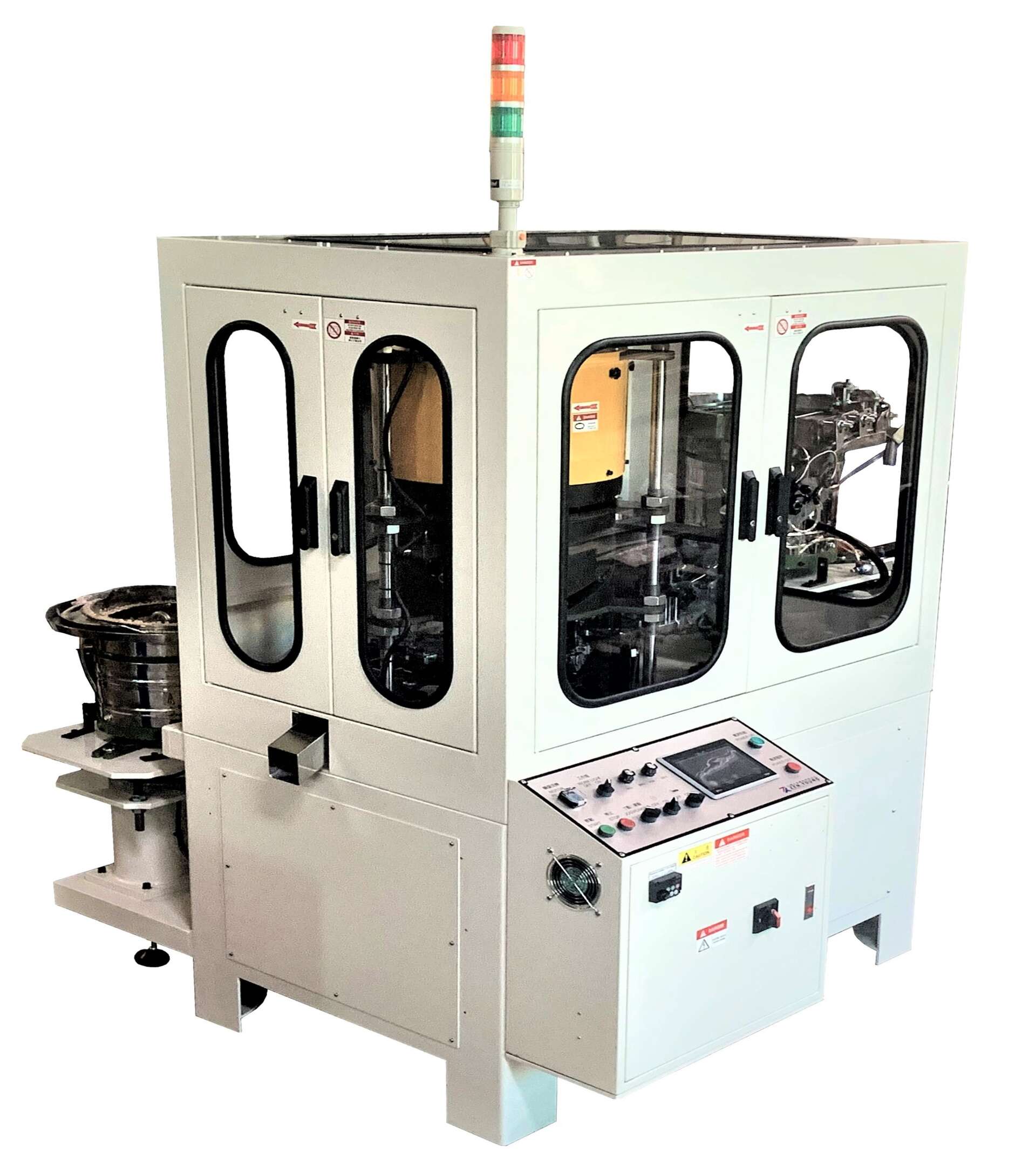

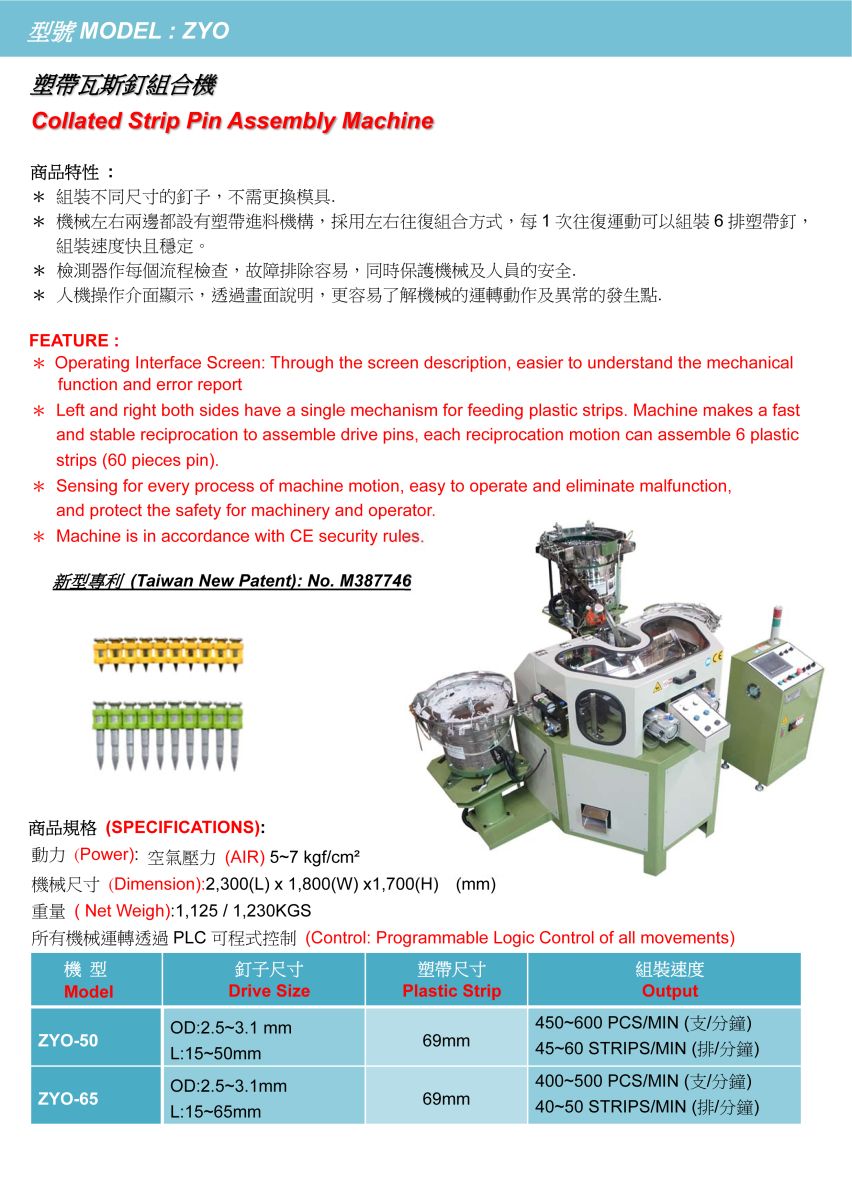

Collated Strip Pin Assembly Machine
Type:ZYO
Motor Power: AIR 4~5kgf/c㎡
Dimension:1,550 (L) x 2,400 (W) x 1,400 (H) mm
Control:Programmable Logic Control of all movement
Taiwan New Patent No. M387746
● Operating Interface Screen: Through the screen easier to understand the
mechanical function and the error place.
● Left and right both sides have a single mechanism for feeding plastic strips.
Machine makes a fast and stable reciprocation to assemble drive pins, each

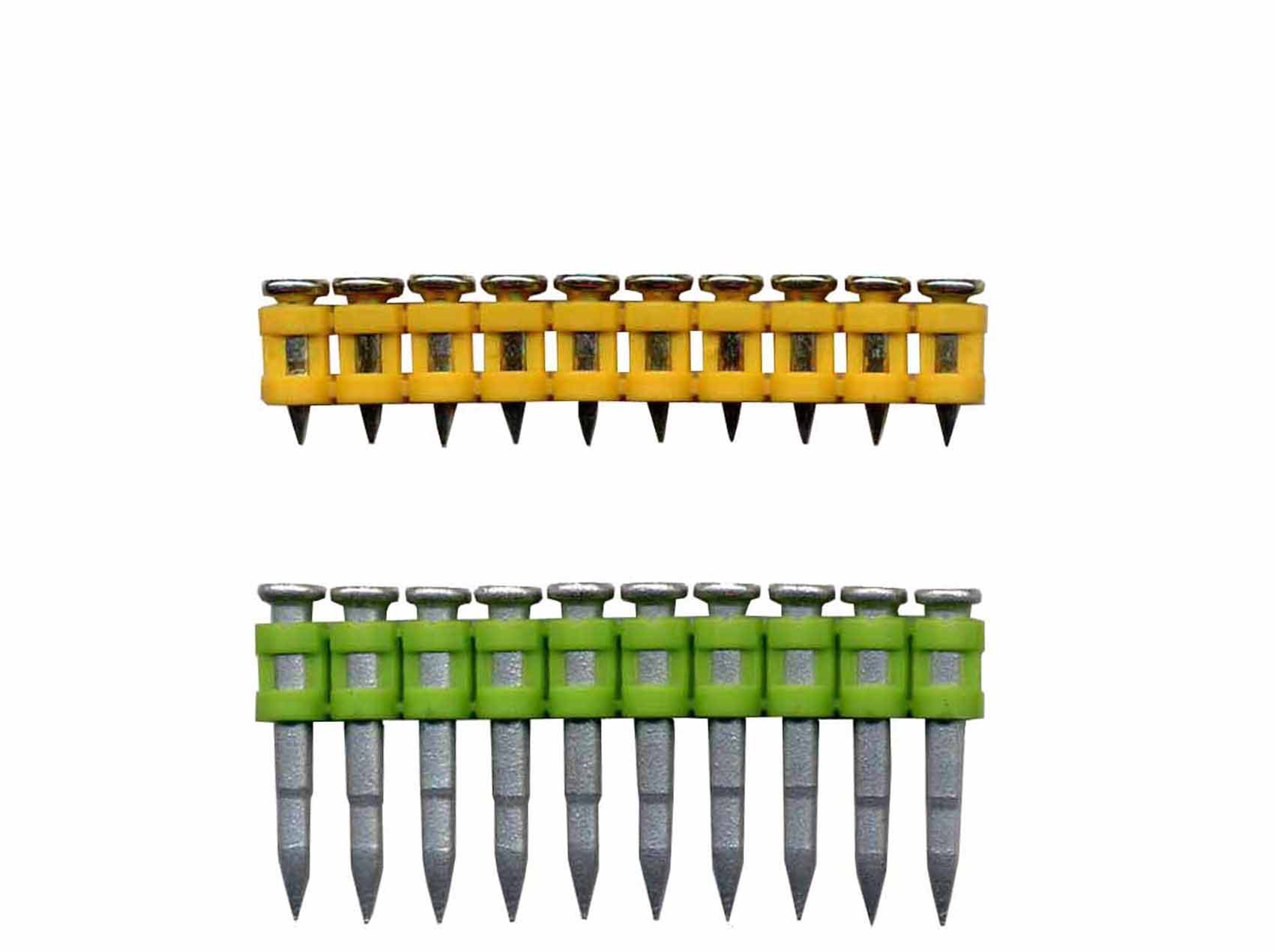

reciprocation motion can assemble 6 plastic strips (60 pieces pin).
● Sensing for every process of machine motion, easy to operate and eliminate
malfunction, and protect the safety for machinery and operator.
