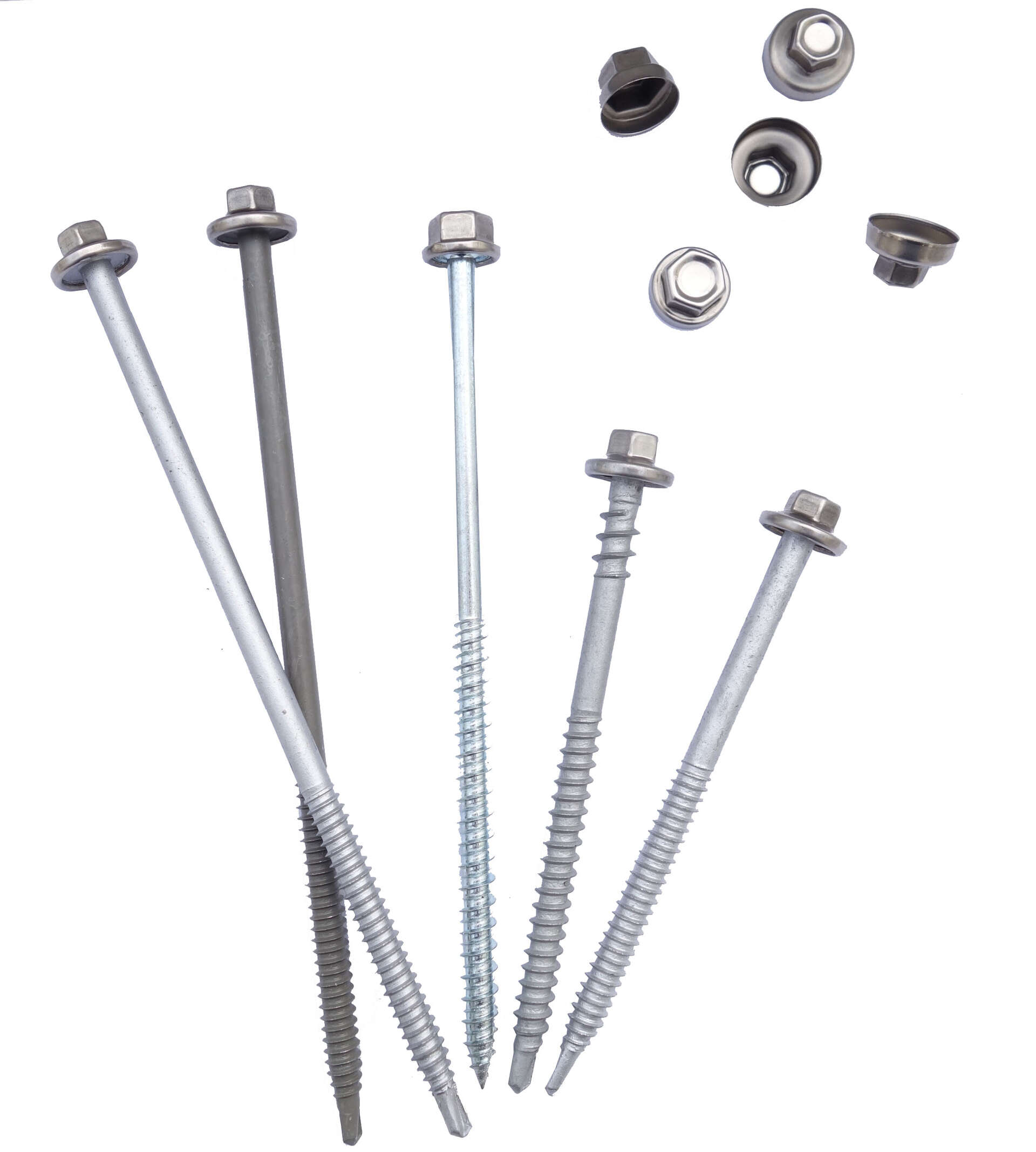

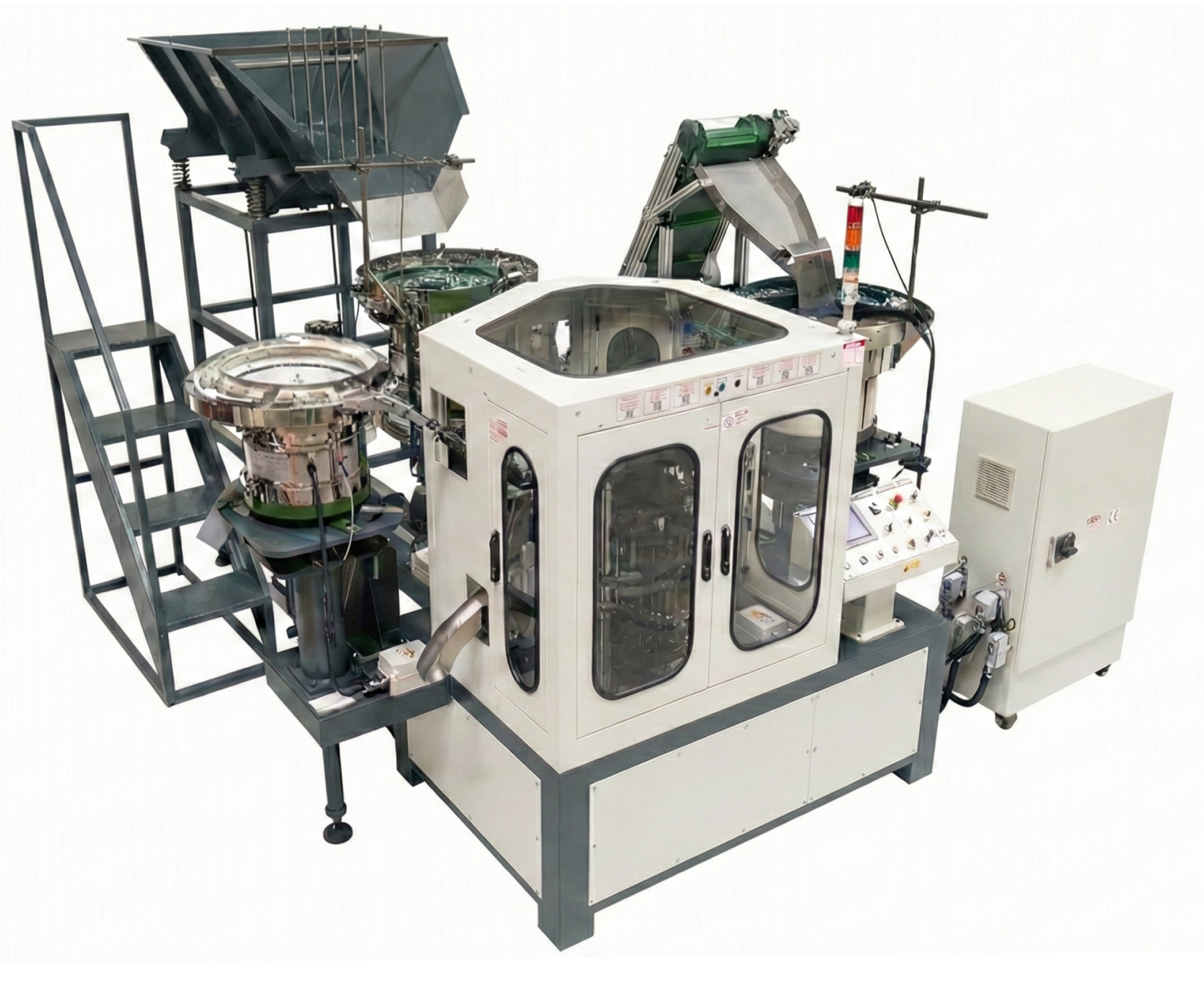

Stainless Steel Cap & Long Self - Drilling / Tapping Screw Assembly Machine
Type:ZYK-150
Motor power: 1HP
Dimension: 2,190 (L) x 1,370 (W) x 1,910 (H) mm
Net weight: 1,200kgs
Control: Programmable Logic Control of all movements
Inverter to adjust machine speed.
● Changing moulds to assemble different sizes of screw or cap.
● This assembling type is able to assemble bending screws (cause of heating
treatment).
● Operating Interface Screen: Through the screen easier to understand the
mechanical function and the error place
