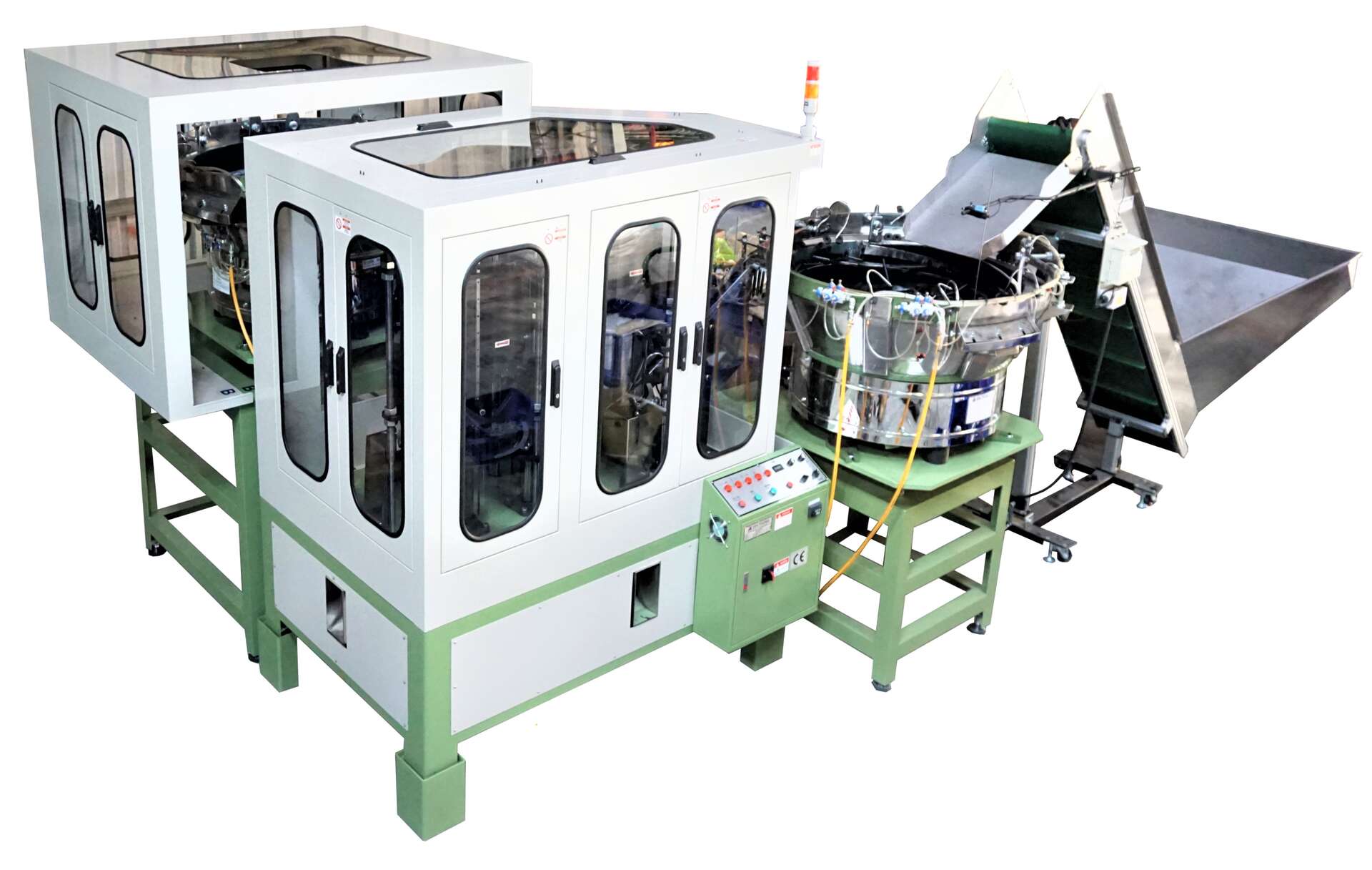

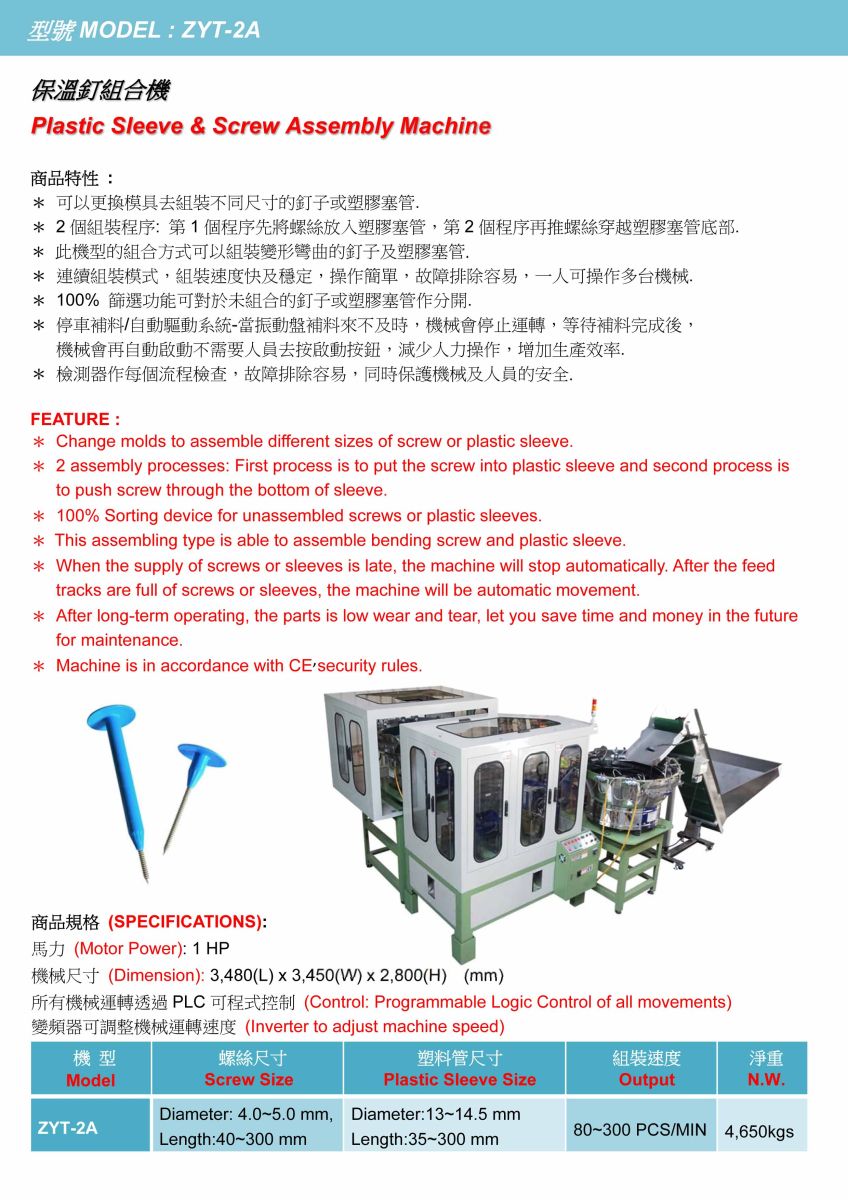

Plastic Sleeve & Screw Assembly Machine
Type:ZYT-2A
Motor Powe: 1 HP
Dimension: 3,480(L) x 3,450(W) x 2,800(H) (mm)
Net Weight: 4,650kgs
Control: Programmable Logic Control of all movements
Inverter to adjust machine speed

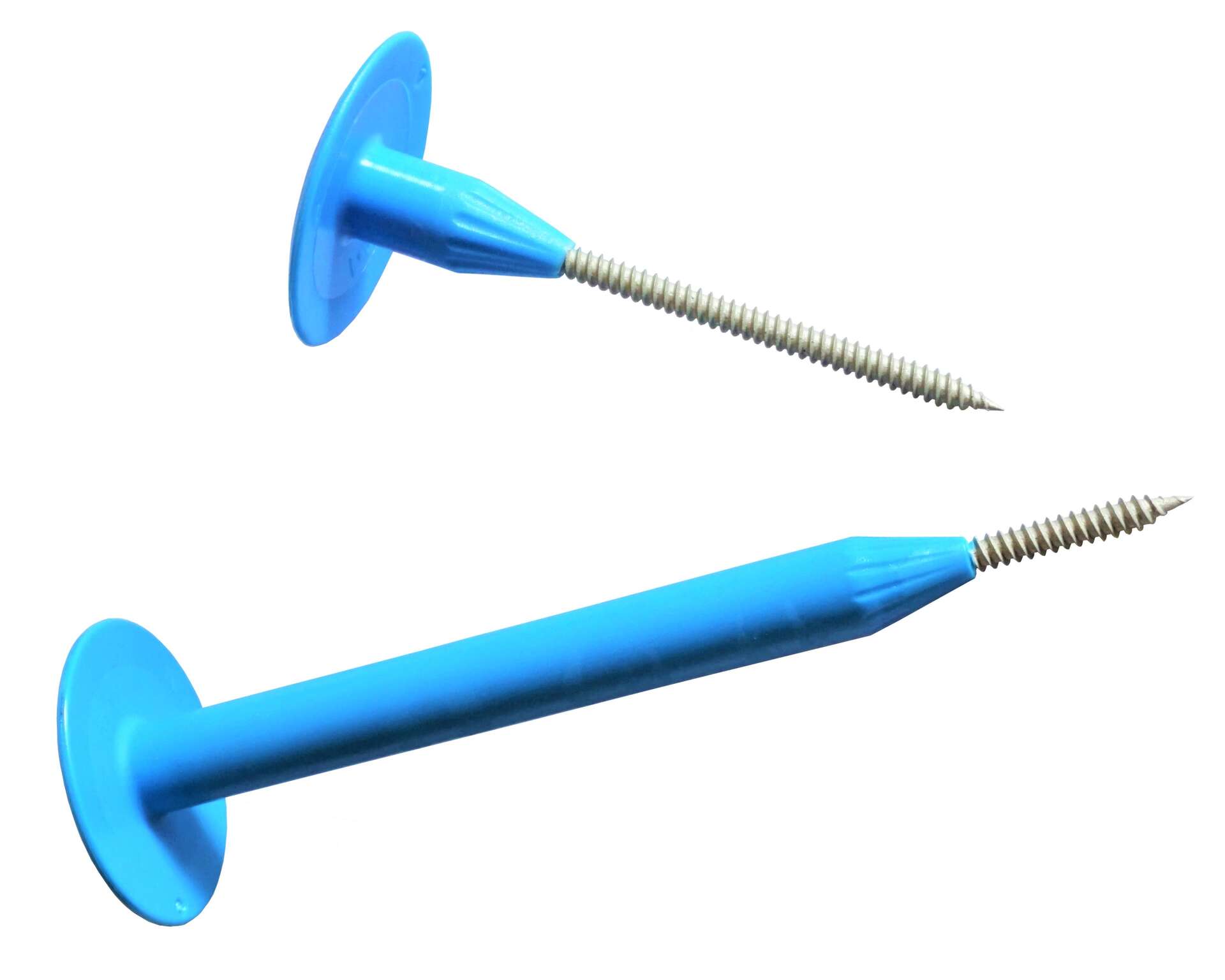

• 2 assembly processes: First process is to put the screw into plastic sleeve and second process is to push screw through the bottom of sleeve.
● Change molds to assemble different sizes of screw or plastic sleeve.
● 2 assembly processes: First process is to put the screw into plastic sleeve and
second process is to push screw through the bottom of sleeve.
● 100% Sorting device for unassembled screws or plastic sleeves.
● This assembling type is able to assemble bending screw and plastic sleeve.
● When the supply of screws or sleeves is late, the machine will stop automatically.
After the feed tracks are full of screws or sleeves, the machine will be automatic
movement.
● After long-term operating, the parts is low wear and tear, let you save time and
money in the future for maintenance.
