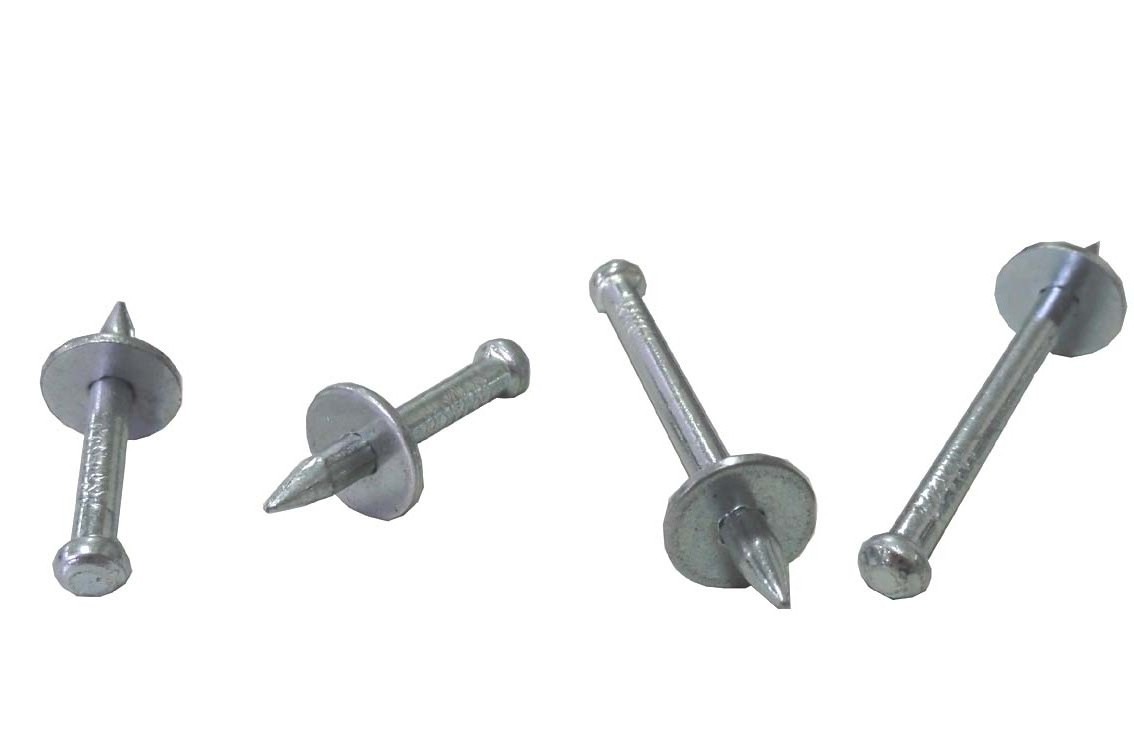

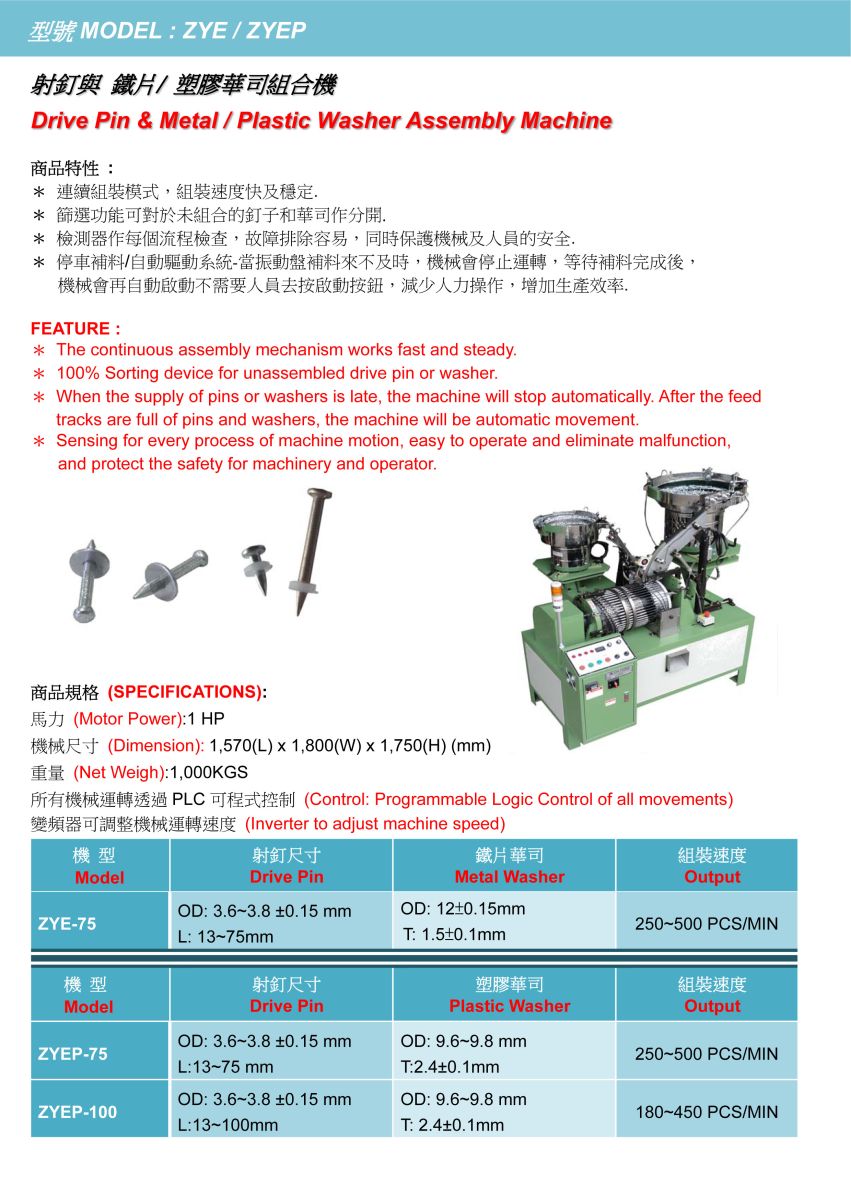

Drive Pin & Metal Washer Assembly Machine
Type:ZYE
Motor power: 1HP.
Dimension:1680(L) x1570(W) x 1660(H) mm
Net weight:1000KGS
Control: Programmable logic control of all movements.
Inverter to adjust machine speed.
It could use with hopper(H12).
.jpg)
● The continuous assembly mechanism works fast and steady.
● Sorting device for unassembled drive pin or washer.
● When the supply of pin or washer is late, the machine will stop automatically. After
the feed tracks are full of pin and washer, the machine will be automatic
movement.
● Sensing for every process of machine motion, easy to operate and eliminate
malfunction,and protect the safety for machinery and operator.
