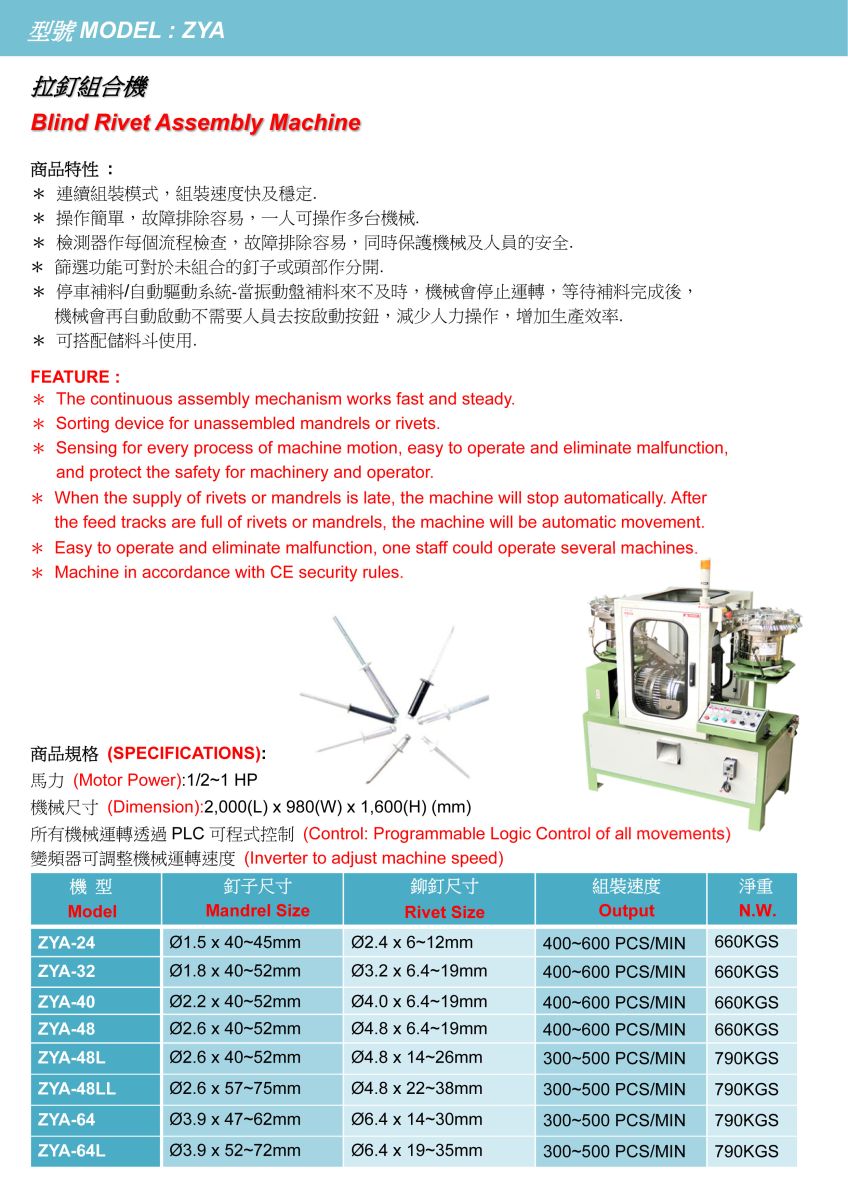

Blind Rivet Assembly Machine

Type:ZYA

Motor power: 1/2~1 HP
Control: Programmable logic control of all movements.
Inverter to adjust machine speed.
Dimension: 2,000 (L) x 980 (W) x 1,600 (H) mm




It could use with hopper(H12).

Add to Inquiry Cart
Category： Other Fastener Assembly machines

●The continuous assembly mechanism works fast and steady.
●When the supply of rivets or mandrels is late,the machine will stop
  automatically.
●After the feed tracks are full of rivet or mandrel, the machine will be
  automatic movement.
● Easy to operate and eliminate malfunction, one staff could operate several
   machines.

機型
Model		 釘子尺寸
Mandrel		 鉚釘尺寸
Rivet		 組裝速度
Output		 淨重
N.W.
ZYA-24 Ø1.5 x 40~45 mm Ø2.4 x 6~12 mm 400-600 PCS/MIN 660 KGS
ZYA-32 Ø1.8 x 40~52 mm Ø3.2 x 6.4~19 mm 400-600 PCS/MIN 660 KGS
ZYA-40 Ø2.2 x 40~52 mm Ø4.0 x 6.4~19 mm 400-600 PCS/MIN 660 KGS
ZYA-48 Ø2.6 x 40~52 mm Ø4.8 x 6.4~ 19 mm 400-600 PCS/MIN 660 KGS
ZYA-48L Ø2.6 x 47~62 mm Ø4.8 x 14~26 mm 300-500 PCS/MIN 790 KGS
ZYA-48LL Ø2.6 x 57~75 mm Ø4.8 x 22~38mm 300-500 PCS/MIN 790 KGS
ZYA-64 Ø3.9 x 47~62 mm Ø6.4 x 14~30 mm 300-500 PCS/MIN 790 KGS
ZYA-64L Ø3.9 x 52~72 mm Ø6.4 x 19~35 mm 300-500 PCS/MIN 790 KGS
