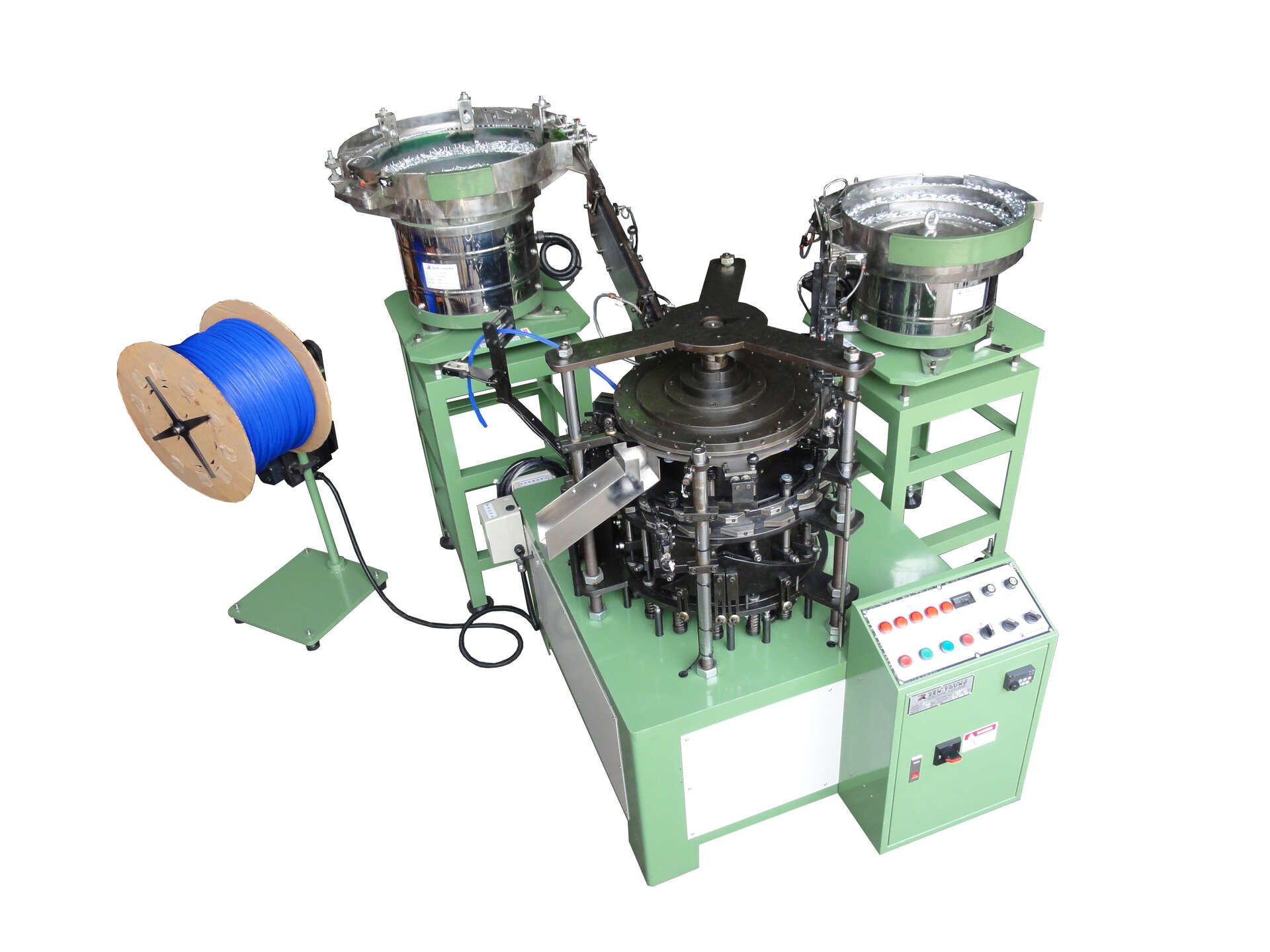

Drive Pin & Plastic Flute & Metal Washer Assembly Machine
Type:ZYX
Motor power: 1HP
Dimension: 1,900 (L) x 2,000(W) x 1,600 (H) mm
Net Weight: 1,250kgs
Inverter to adjust machine speed.
Control: Programmable logic control of all movements
Taiwan New Patent No.M423014

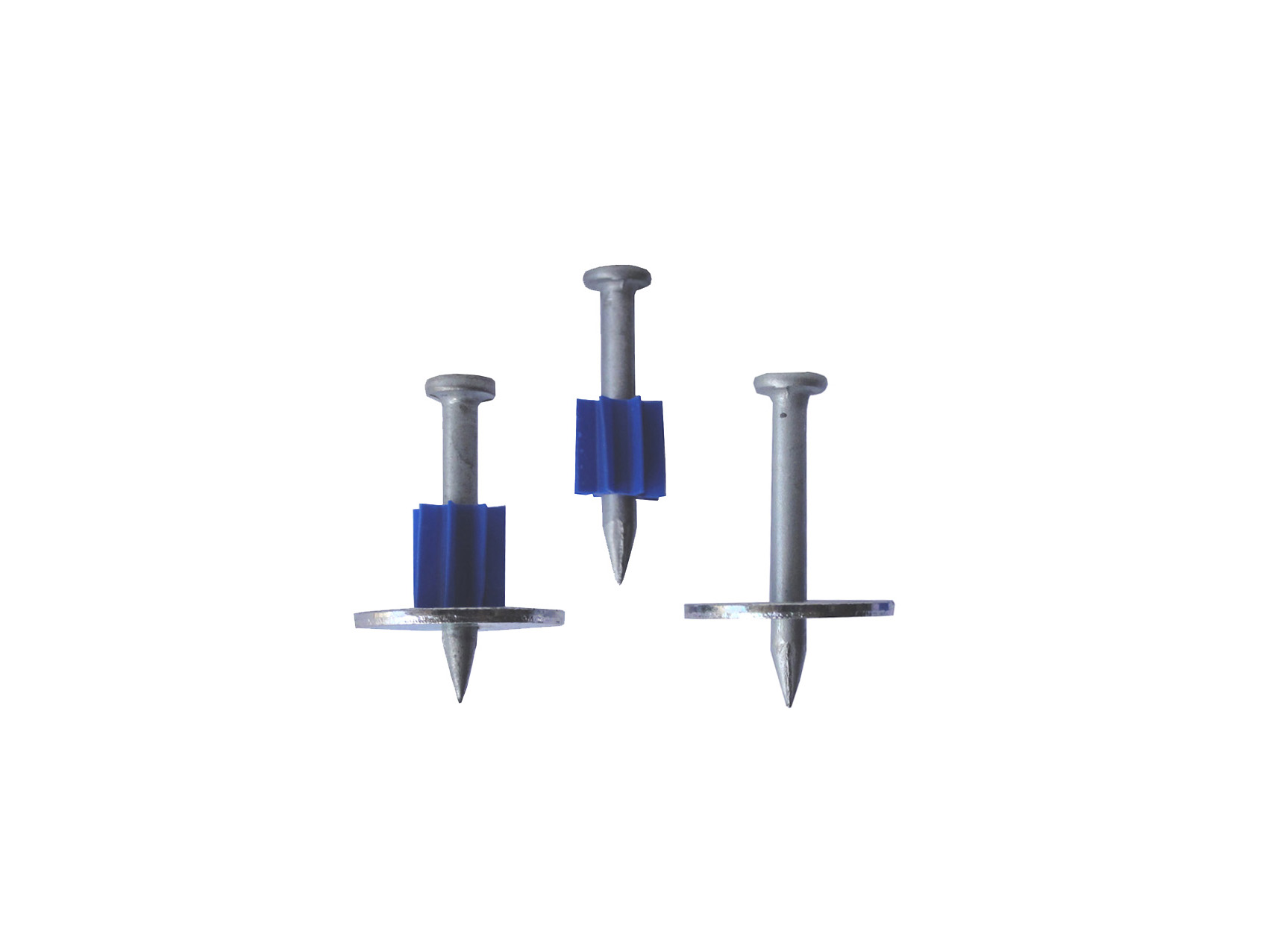

Three assembling modes
－Drive pin assembles with plastic flute and metal washer.
－Drive pin assembles with plastic flute.
－Drive pin assembles with metal washer.
● Changing moulds to assemble different sizes of drive pin or washer.
● The continuous assembly mechanism works fast and steady.
● Sensing for every process of machine motion, easy to operate and eliminate
malfunction,and protect the safety for machinery and operator.
